Rear Heat Shield

REMOVAL

1. Remove the spare tire.
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

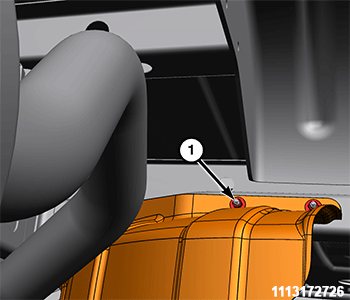

   1 - Rear Heat Shield Nuts

3. Remove the rear heat shield nuts.

   Courtesy of CHRYSLER GROUP, LLC

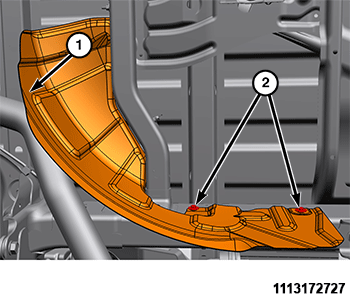

   1 - Rear Heat Shield

   2 - Rear Heat Shield Bolts

4. Remove the rear heat shield bolts and the rear heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

• Install the rear heat shield and securely tighten the rear heat shield bolts.
