Exhaust Muffler: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Saturate the clamp nuts with Mopar® Rust Inhibitor. Allow 5 minutes for penetration.

   Courtesy of CHRYSLER GROUP, LLC

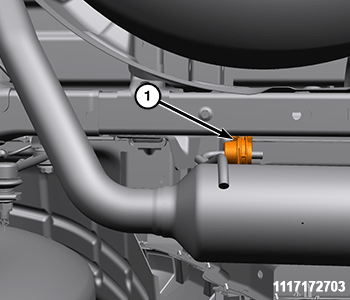

   1 - Exhaust Isolator

3. Remove the exhaust isolator bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

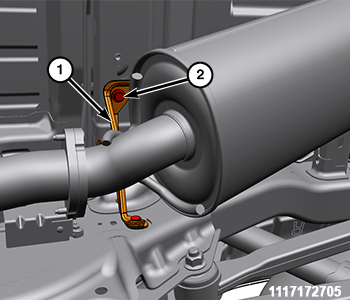

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolts

4. Remove the exhaust isolator bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

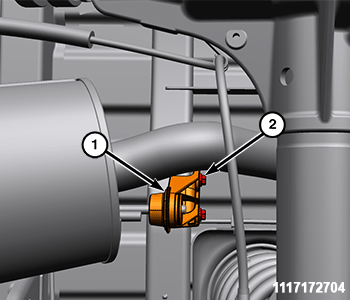

   1 - Exhaust Isolator

   2 - Exhaust Isolator Bolts

5. Remove the exhaust isolator bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

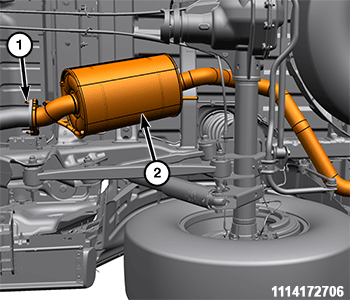

   1 - Exhaust Muffler Nuts

   2 - Exhaust Muffler Assembly

6. Remove the exhaust muffler nuts and the exhaust muffler assembly.

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Check the exhaust system for contact with the body panels. A minimum of 25.4 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
• Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary. Refer to LEAK TESTING  .
