BELLHOUSING And Oil Fill Plug
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - BELLHOUSING AND OIL FILL PLUG

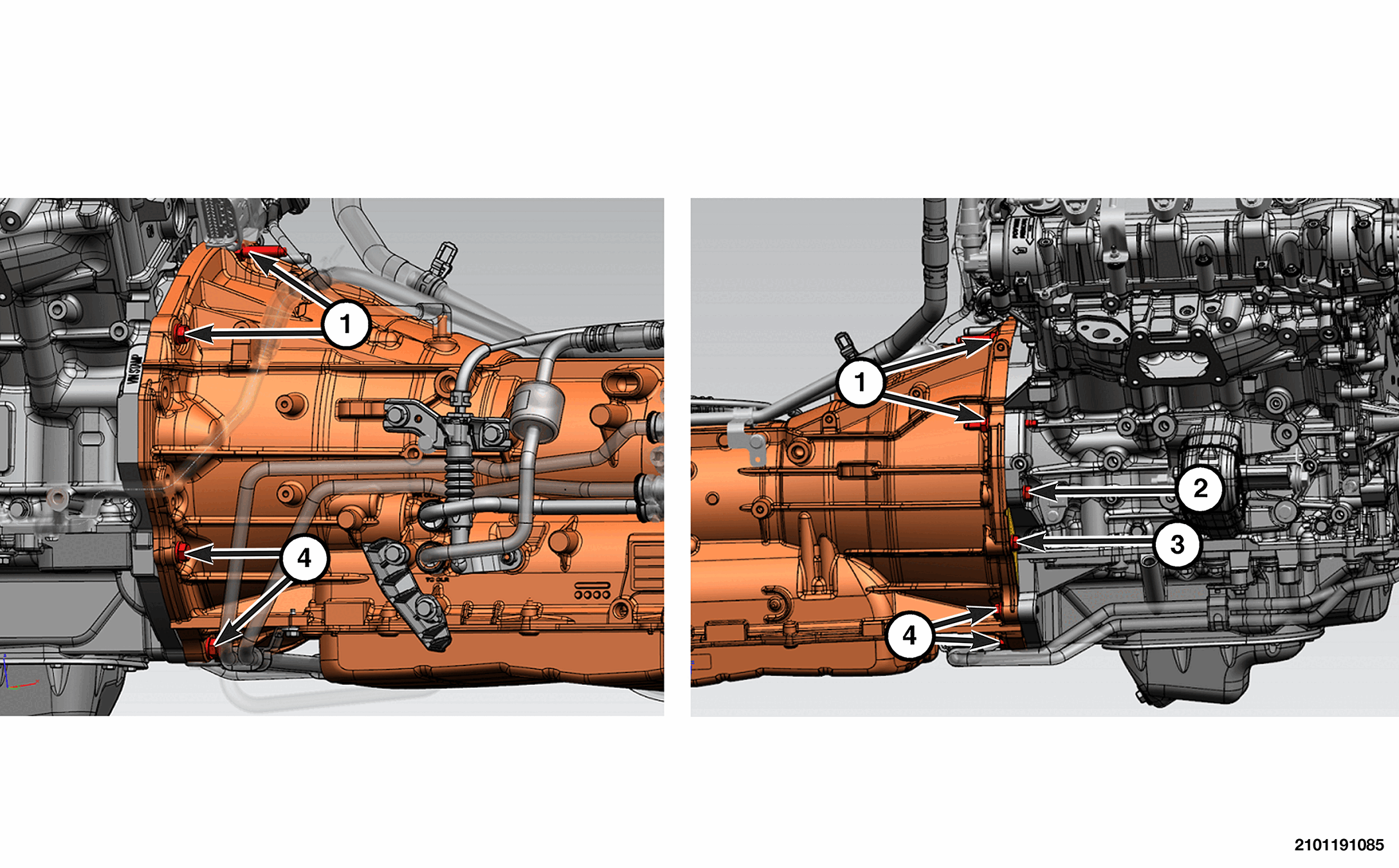

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Bellhousing to Engine Bolts |
|
- |
| 2 | Engine Block To Transmission Bellhousing Bolt | 50 N.m (37 Ft. Lbs.) | - |
| 3 | Dust Shield To Transmission Bellhousing Bolt | 12 N.m (9 Ft. Lbs.) | - |
| 4 | Bellhousing To Engine Oil Pan Bolts | 50 N.m (37 Ft. Lbs.) | - |
| Not Shown | Transmission Oil Fill Plug | 35 N.m (26 Ft. Lbs.) | Located on right side of transmission case. |
