Transmission Cooler Line Quick Connect Fittings: Disconnect
WARNING: This page is about a different variant/trim than selected.

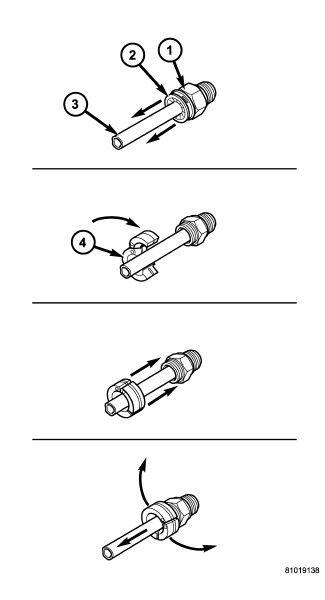

TRANSMISSION END
| 1 - QUICK CONNECT FITTING |
| 2 - DUST CAP |
| 3 - OIL COOLER LINE |
| 4 - SPECIAL TOOL 8875A for 3/8"Line or 9546 for 1/2 " Line. |
- Remove dust cap by pulling it straight back off of quick connect fitting
- Place disconnect Special Tool (special tool #8875A, Disconnect, Transmission Cooler Line) onto a 3/8 inch transmission cooler lines or Special Tool (special tool #9546, Disconnect Tool) onto a 1/2 inch transmission cooler lines with the fingers of the tool facing the quick connect fitting.
- Slide disconnect tool down the transmission line and attach the fingers of the tool into the retaining clip. When properly attached in the clip, the tool will fit flush against the quick connect fitting.
- Rotate the disconnect tool 60° to expand the retaining clip.
- While holding the disconnect tool against the quick connect fitting, pull back on the transmission cooler line and remove the line.
TRANSMISSION OIL COOLER END
- Using a suitable tool, remove the spring clips from the connectors.
- Pull the transmission oil cooler lines out from the transmission oil cooler.
