Clutch A - Disassembly And Adjustments
WARNING: This page is about a different variant/trim than selected.
CLUTCH A MEASUREMENT PROCEDURE
- Using (special tool #10428, Adapter, Pressing Tool) and (special tool #10429, Gauge, Force), place the Clutch A/oil pump assembly in a suitable arbor press.
- Apply 200 N (45 lbs.) of force to the Clutch A backing plate to compress the wave plate.

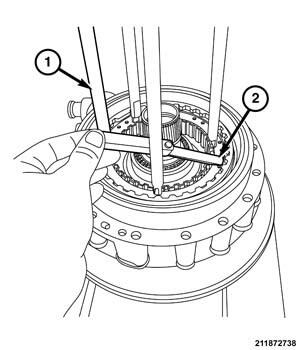

1 - Pressing Tool Adapter 2 - Feeler Gauge - With a suitable feeler gauge measure the gap between the Clutch A backing plate and the snap ring.
- Refer to the clutch clearance table for specs. If clearance is not within specification, a thinner or thicker selectable snap ring can be installed for proper clearance.

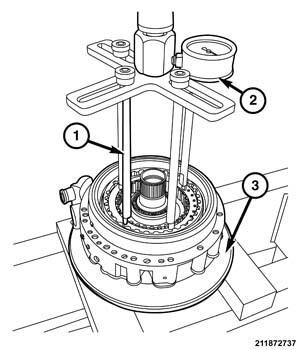

| 1 - Pressing Tool Adapter |
| 2 - Force Gauge |
| 3 - Clutch A/Oil Pump Assembly |
CLUTCH SPECIFICATIONS
| Clutch | Condition | Minimum | Normal | Maximum |
|---|---|---|---|---|
| A | NEW | 1.51 mm | 1.665 mm | 1.82 mm |
| 0.059 in | 0.066 in | 0.072 in | ||
| AFTER OPERATION | 1.51 mm | 1.765 mm | 2.02 mm | |
| 0.059 in | 0.069 in | 0.080 in |
CLUTCH A SELECTABLE SNAP RINGS
| 3.2 mm | 0.125 in. |
| 3.0 mm | 0.118 in. |
| 2.8 mm | 0.110 in. |
| 2.6 mm | 0.102 in. |
| 2.4 mm | 0.0944 in. |
| 2.2 mm | 0.0866 in. |
DISASSEMBLY Clutch A, depending on transmission Julian date, may contain wave springs that sit around each friction plate. There will be five friction plates, five wave springs, five steel plates, one support plate, one snap ring, and one wave plate.
| 1 - Snap Ring |
| 2 - Support Plate |
| 3 - Friction Plates |
| 4 - Wave Springs |
| 5 - Steel Plates |
| 6 - Wave Plate |
- Remove the oil pump from the transmission case. Refer to PUMP, TRANSMISSION OIL, REMOVAL AND INSTALLATION .
1 - Clutch B Damper Spring - Remove the Clutch B damper spring.
1 - Clutch B Piston - Remove the Clutch B piston from the assembly.
1 -Clutch B Piston Seal - Check the Clutch B piston seal for damage or wear and replace if necessary.
1 - Snap Ring 2 - Clutch A Discs and Plates - Remove the snap ring.
- Remove the Clutch A disks and plates.
1 - Hub - Remove the hub.
1 - Spring Compressor Tool 2 - Arbor Press 3 - Transmission Oil Pump Assembly - Position the oil pump housing assembly in a suitable arbor press.
- Using (special tool #8285, Compressor, Spring), press on the fingers of the piston retaining ring to remove tension.
1 - Retaining Ring - Remove the two halves of the retaining ring.
1 - Clutch A Belleville Spring - Remove the Clutch A belleville spring.
1 - Clutch A Piston - Remove the Clutch A piston (1) by rotating and gently lifting.
1 - Clutch A Piston Outer Seal 2 - Clutch A Piston Inner Seal - Remove and DISCARD the Clutch A Piston inner and outer seals.
ASSEMBLY
NOTE:
If the clutch discs are being replaced, soak in 8HP transmission fluid before assembly.
- Install new Clutch A inner and outer piston seals.
1 - Clutch A Piston - Insert the Clutch A piston into the housing. Lubricate the seals with transmission assembly lube prior to installing them into the housing.
1 - Clutch A Belleville Spring - Insert the belleville spring.
1 - Spring Compressor Tool 2 - Arbor Press 3 - Transmission Oil Pump Assembly - Position the oil pump housing assembly in a suitable arbor press.
- Using
(special tool #8285, Compressor, Spring)
, press on the fingers of the piston retaining ring to remove tension.
1 - Retaining Ring - Install the two retaining ring halves.
1 - Hub - Install the hub.
1 - Snap Ring 2 - Clutch A Discs and Plates - Install the Clutch A disks and plates.
- Install the snap ring.
1 - Clutch B Piston Seal - Install a NEW
Clutch B seal.
1 - Clutch B Piston - Install the Clutch B piston on the assembly.
1 - Clutch B Damper Spring - Install the Clutch B damper spring on the Clutch B piston.
- Install the transmission oil pump. Refer to PUMP, TRANSMISSION OIL, REMOVAL AND INSTALLATION .
