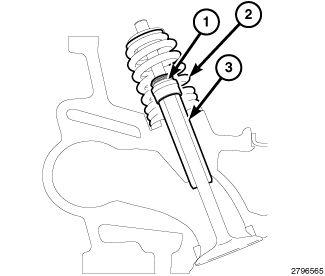

Valve Guide Seal
| 1 - Valve Guide Seal |
| 2 - Valve Spring |
| 3 - Valve Guide |
The valve guide seals are made of elastomer over-molded steel in a non-integrated type guide mounted configuration. The seal is not held in place by the valve spring. The valve guide seals are not reusable if removed from the valve guides, they must be replaced. Always coat the seals with clean engine oil before installing the valves.
