Engine Block

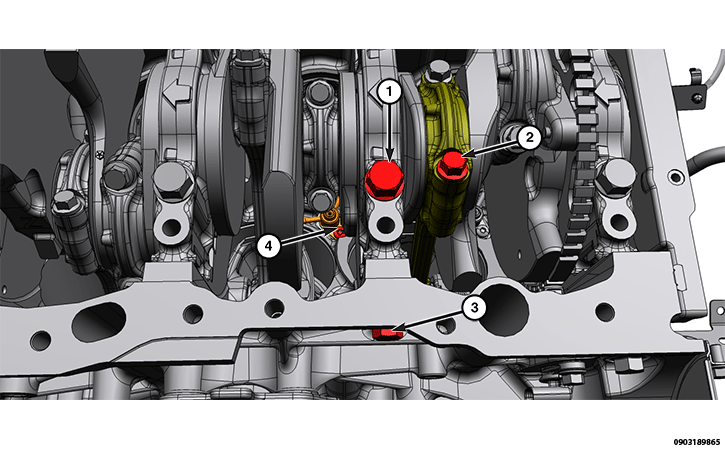

GC0203258Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - ENGINE BLOCK

CALLOUT DESCRIPTION SPECIFICATION COMMENTS

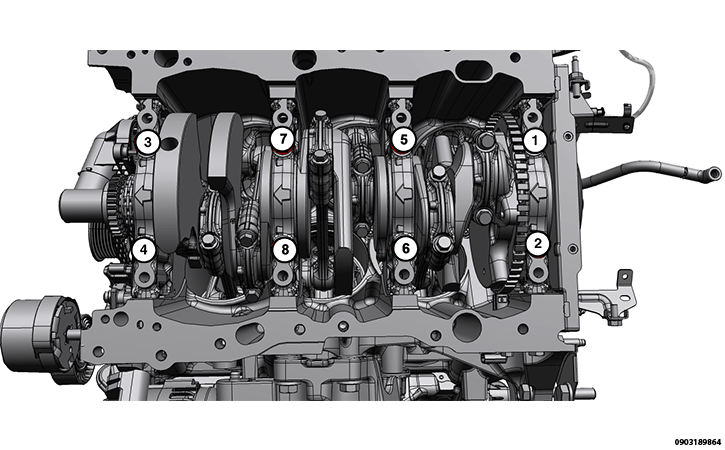

1 Crankshaft Inner Main Bearing Cap M11 Bolts Torque Procedure:
  1. 20 N.m (15 Ft. Lbs.)
  2. Turn additional 90°
 Tightening Sequence
GC0203377Courtesy of CHRYSLER GROUP, LLC
2 Connecting Rod Cap Bolts Torque Procedure:
  1. 20 N.m (15 Ft. Lbs.)
  2. Turn additional 90°
 Do not reuse these fasteners. If removed, a NEW  fastener must be installed and tightened to specifications.

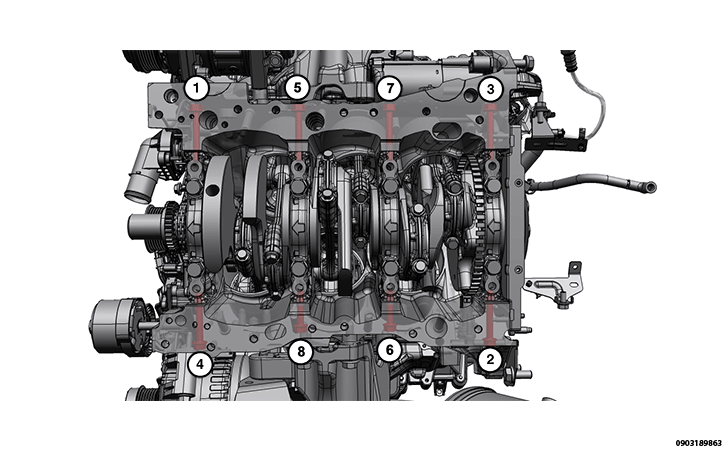

3 Crankshaft Side Main Bearing Cap (Tie Bolt) M8 Bolts 30 N.m (22 Ft. Lbs.)  Tightening Sequence
GC0203647Courtesy of CHRYSLER GROUP, LLC
4 Piston Oil Cooler Jet to Engine Block Bolt 6 N.m (63 In. Lbs.)  -

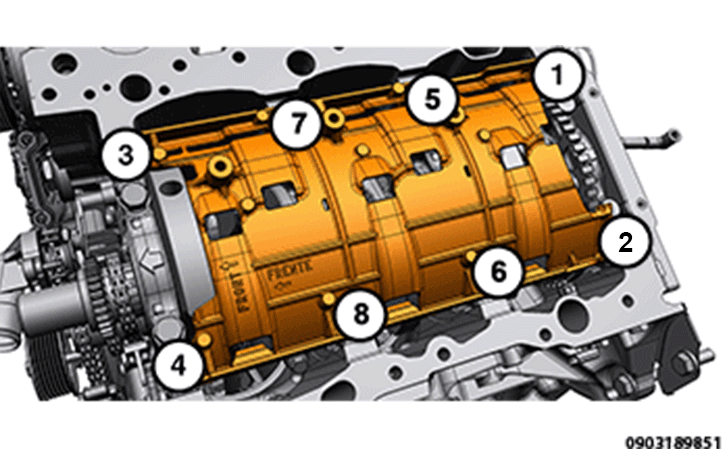

- Crankshaft Outer Main Bearing Cap and Windage Tray M8 Bolts Torque Procedure:
  1. 21 N.m (15 Ft. Lbs.)
  2. Turn additional 90°
 Tightening Sequence
GC0203251Courtesy of CHRYSLER GROUP, LLC
- Crankshaft Target Wheel to Counterweight Bolts 11 N.m (8 Ft. Lbs.)  Do not reuse these fasteners. If removed, a NEW  fastener must be installed and tightened to specifications.
- Engine Block Ground Strap Bolt 23 N.m (17 Ft. Lbs.)  -
- Engine Block Ground Strap to Frame Nut 20 N.m (15 Ft. Lbs.)  -
- Engine Lift Bracket 21 N.m (15 Ft. Lbs.)  -

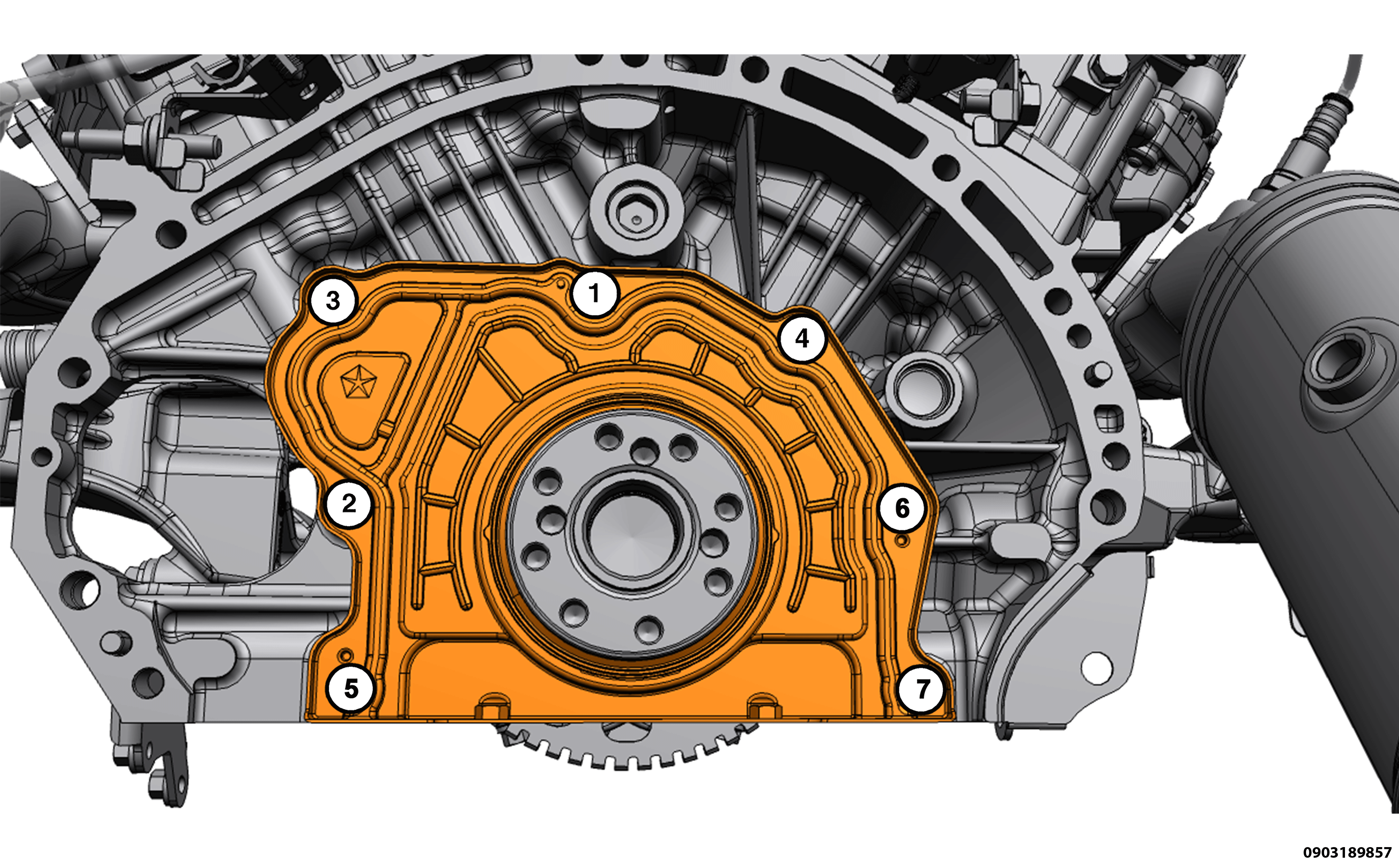

- Rear Crankshaft Oil Seal Retainer Bolts 12 N.m (9 Ft. Lbs.)  Tightening Sequence
