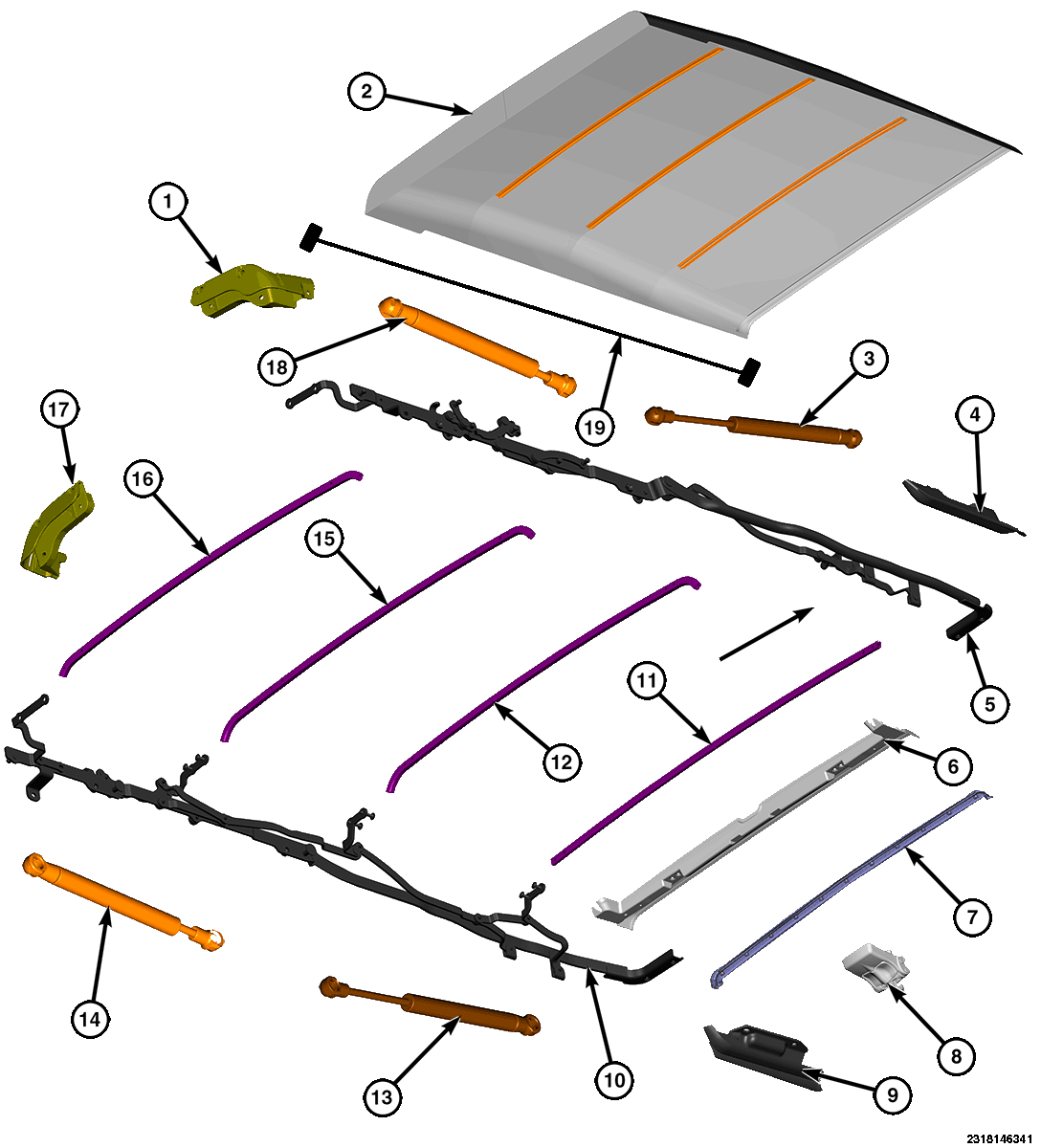

Folding Soft Top, 4 Door: Description
| 1 - BRACKET BOW #5 RIGHT | 11 - BOW ASSEMBLY #2 |
| 2 - COVER ASSEMBLY | 12 - BOW ASSEMBLY #3 |
| 3 - FRONT GAS PROP RIGHT | 13 - FRONT GAS PROP LEFT |
| 4 - BOW SEAL RIGHT | 14 - REAR GAS PROP LEFT |
| 5 - LINKAGE ASSEMBLY RIGHT | 15 - BOW ASSEMBLY #4 |
| 6 - BOW ASSEMBLY #1 | 16 - BOW ASSEMBLY #5 |
| 7 - COMPRESSION PANEL BOW #1 | 17 - BRACKET BOW #5 LEFT |
| 8 - LATCH BOW #1 | 18 - REAR GAS PROP RIGHT |
| 9 - BOW SEAL LEFT | 19 - TENSION CABLE(S) |
| 10 - LINKAGE ASSEMBLY LEFT |
