Rear Driveshaft: Notes
REMOVAL
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Index mark the driveshaft to pinion flange union for installation purposes. Mark the driveshaft with an arrow for installation direction reference.
- Using a long piece of wood or similar, fasten it to the driveshaft with several cable ties in order to keep the driveshaft from over-articulating during removal and installation.

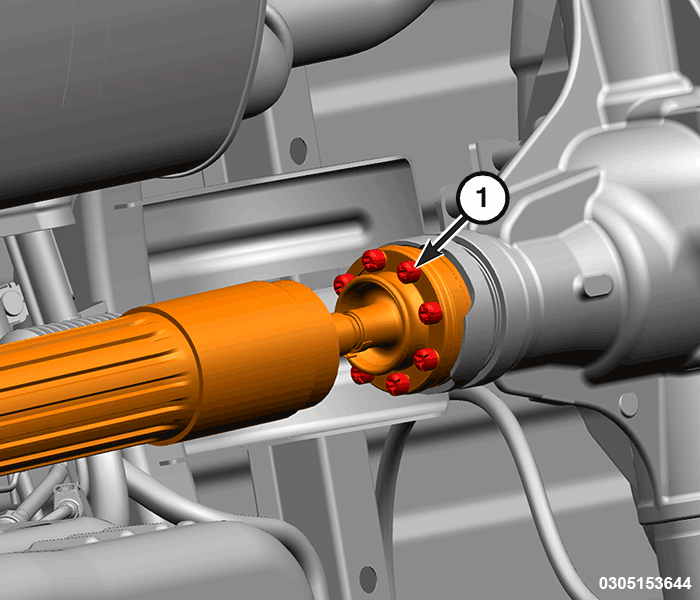

1 - Driveshaft to Pinion Flange Bolts - Remove and DISCARD the rear driveshaft to pinion flange bolts and shims.
- Index mark the driveshaft to transfer case flange for installation purposes.

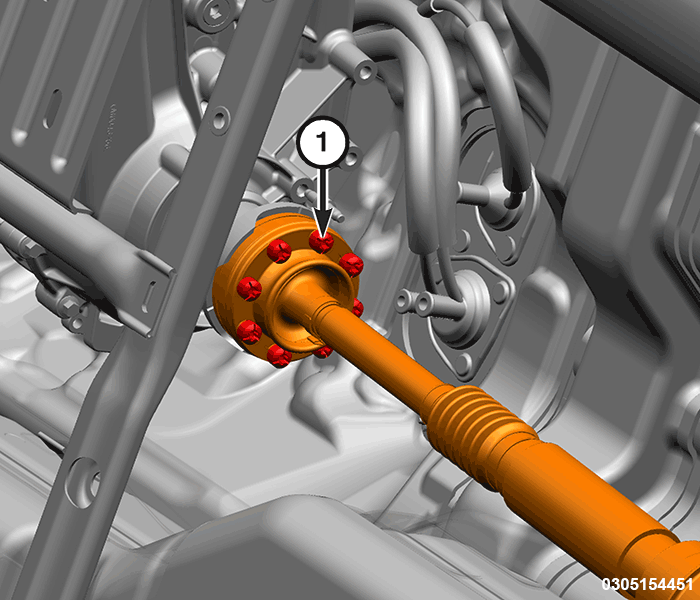

1 - Driveshaft to Transfer Case Flange Bolts - Remove and DISCARD
the driveshaft to transfer case flange bolts.CAUTION:
Driveshaft removal is a two-person operation. Never allow the driveshaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. An assistant is required. If a driveshaft section is hung unsupported, damage may occur to the shaft, joint and center bearing from over-angulation. This may result in driveline vibrations or component failure.
1 - Center Support Bearing Bolts - Remove the two center support bearing bolts and remove the driveshaft from the vehicle.
- Inspect the driveshaft for damage, replace as necessary.
- Inspect the transfer case flange and the rear axle flange for damage and replace as necessary.
INSTALLATION
During installation, torque the fasteners to the specifications in the torque table(s) below.
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Position the rear driveshaft in the vehicle and align the driveshaft alignment marks to the rear axle pinion flange and transfer case output flange.
- Install NEW rear driveshaft bolts. If NEW bolts are not available clean the old bolts and apply Mopar® Lock and Seal Adhesive or equivalent.
TORQUE SPECIFICATIONS
