Park Brake Adjustment

GC0182902Courtesy of CHRYSLER GROUP, LLC

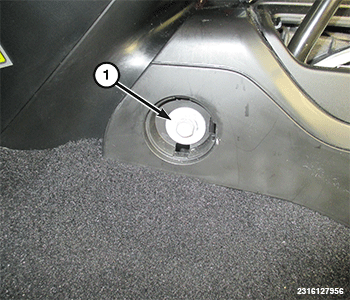

  1. Remove the front bolt covers and the bolts (1) on both sides of the console.
  2. Move the front seats to the full forward position.
    GC0183488Courtesy of CHRYSLER GROUP, LLC

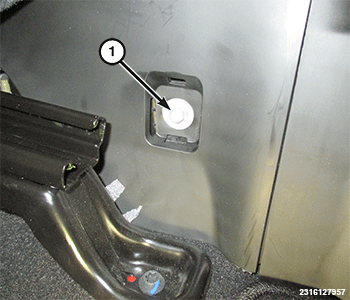

  3. Remove the rear bolt covers and the bolts (1) on both sides of the console.
  4. Remove the floor console end cap. Refer to CONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .
    GC0200022Courtesy of CHRYSLER GROUP, LLC

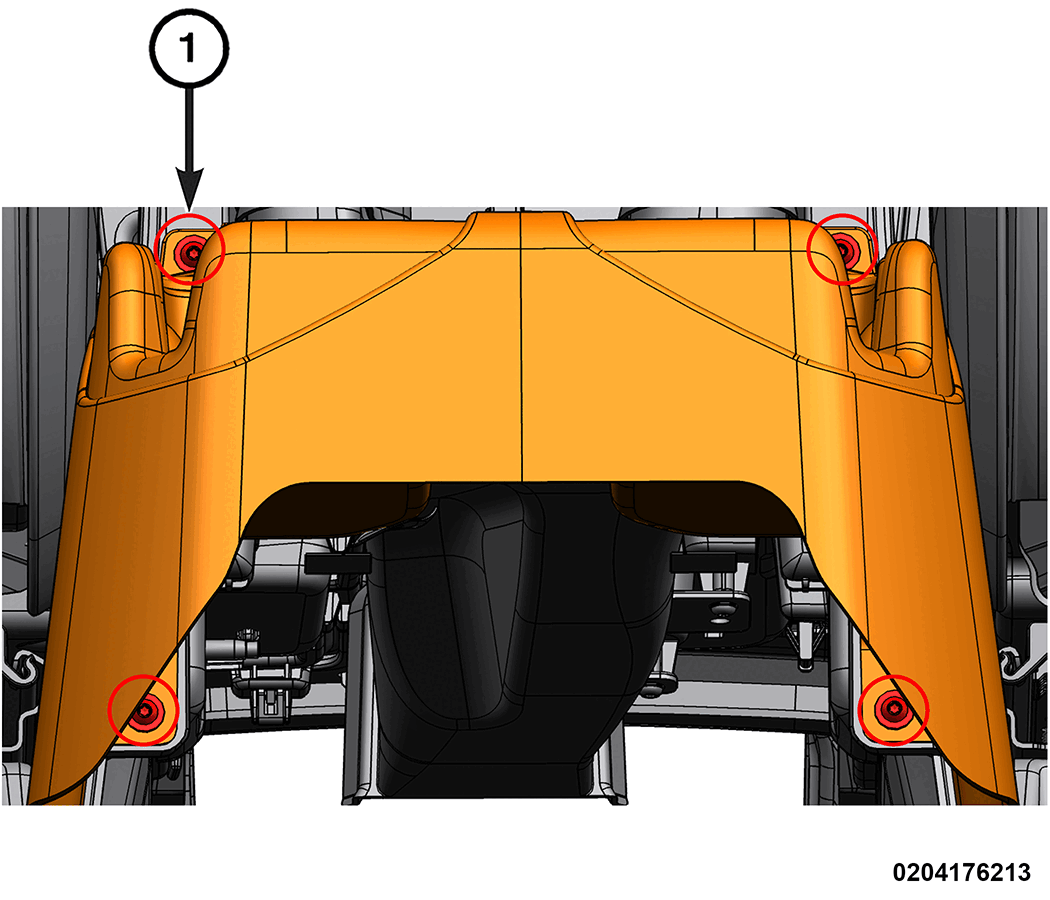

  5. Lift the center floor console slightly then remove the cup holder screws (1) and remove the cup holder.
  6. Release the parking brake handle and place in the completely lowered position.
  7. Turn the adjuster nut counterclockwise (loosening direction) until there is clear slack in the cable system.
  8. Pull the parking brake handle gently with virtually no effort in order to evaluate the slack in the cable system. At no time in the adjustment process should you be applying the park brake lever with any significant input or travel, with the exception of Step 6. You are simply looking for looseness or slack at the very beginning of lever travel with essentially zero input force.
  9. Turn the adjuster nut in the clockwise direction (tightening) while continuing to wiggle the handle up and down gently to assess the slack in the cable system. Continue turning the nut in the clockwise (tightening) direction, while at the same time wiggling the park bake lever, until slack is perceived to be gone.
  10. Apply the parking brake lever at a minimum of 9 clicks and let sit for one minute.
  11. Release the parking brake and check for any new slack that may have appeared. Readjust as necessary according to step 5 above.
  12. Tighten the adjuster nut an additional one full turn.
  13. Pull on the parking brake handle and set the parking brake to ensure it functions properly.
  14. Release the parking brake handle and place in the completely lowered position.
    GC0200022Courtesy of CHRYSLER GROUP, LLC
  15. Position the cup holder to the center floor console then install and tighten the cup holder screws (1).
  16. Lower the floor console to the floor.
  17. Install the floor console end cap. Refer to CONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .
    GC0183488Courtesy of CHRYSLER GROUP, LLC
  18. Install the bolts (1) and tighten securely.
  19. Install the rear bolt covers on both sides of the console.
  20. Move the front seats to the full rearward position.
    GC0182902Courtesy of CHRYSLER GROUP, LLC
  21. Install the bolts (1) and tighten securely.
  22. Install the front bolt covers on both sides of the console.
