Skid Plate

REMOVAL

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .

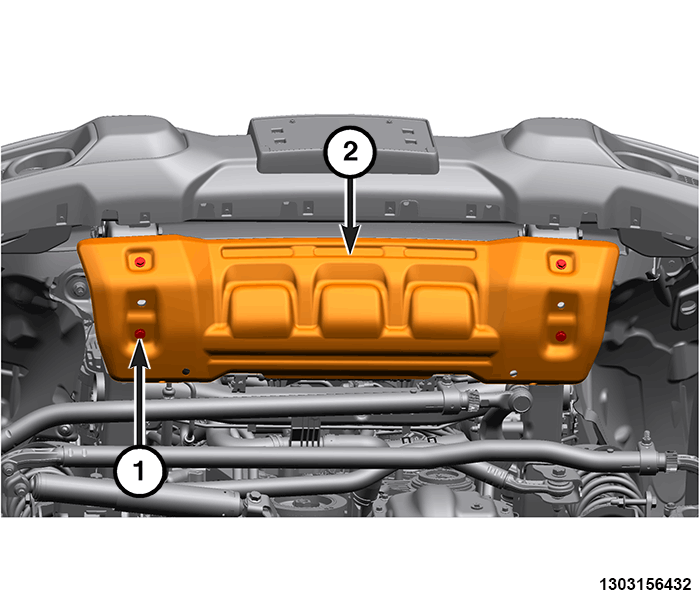

   Courtesy of CHRYSLER GROUP, LLC

2. Remove the fasteners (1).
3. Remove the skid plate (2).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Install the skid plate (2).
2. Install and securely tighten the fasteners (1).
3. Remove the supports and lower the vehicle.
