Lower Closeout Panel

REMOVAL

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

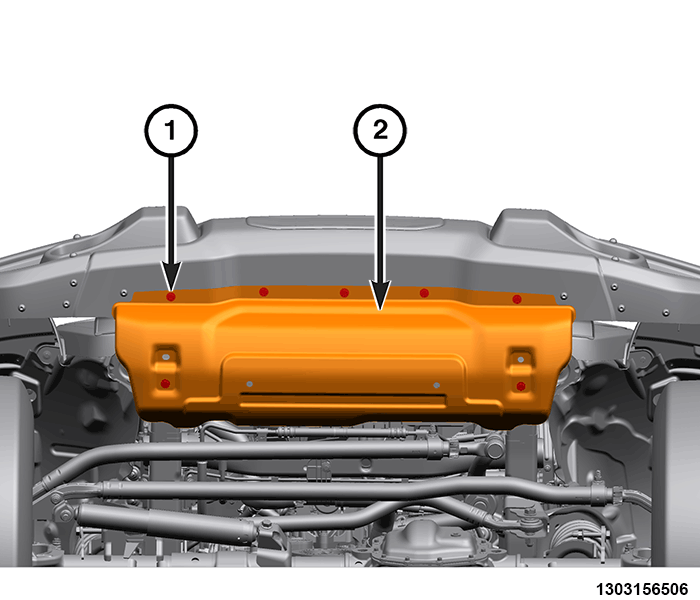

2. Remove the fasteners (1).
3. Remove the lower closeout panel (2).

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Install the lower closeout panel (2).
2. Install the fasteners (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
3. Remove the supports and lower the vehicle.
