Air Dam

REMOVAL

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

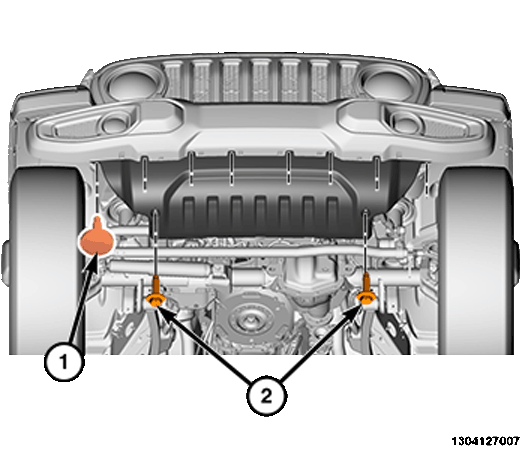

2. Remove the eight push pin fasteners (1).
3. Remove the bolts (2).

   Courtesy of CHRYSLER GROUP, LLC

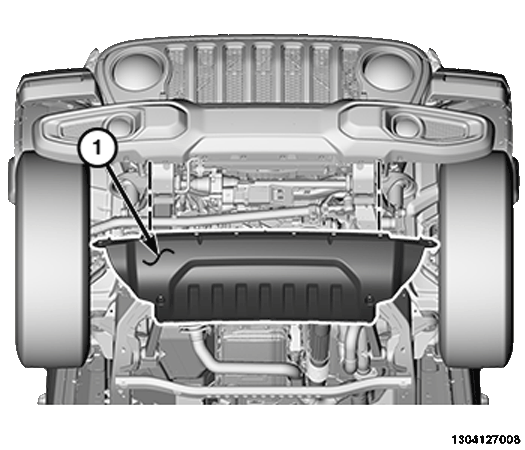

4. Remove the air dam (1).

INSTALLATION

1. Install the air dam (1).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the eight push pin fasteners (1).
3. Install and securely tighten the bolts (2).
4. Remove the supports and lower the vehicle.
