Sensor, Stop Lamp: Removal

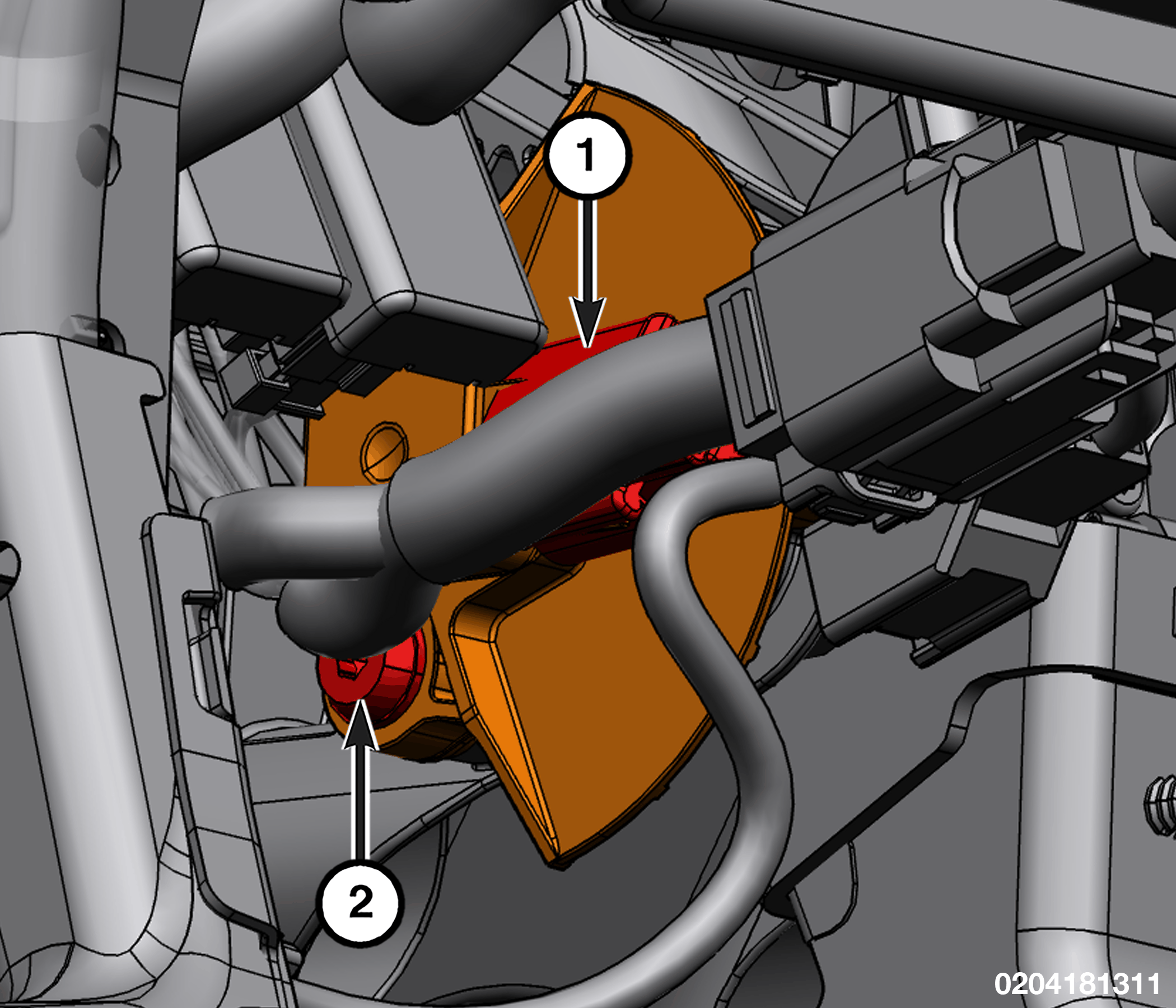

GC0203781Courtesy of CHRYSLER GROUP, LLC
  1. Remove the steering column opening cover (Refer to - COVER, STEERING COLUMN OPENING ).
  2. Disconnect the brake pedal position sensor wire harness connector (1).
  3. Remove the brake pedal position sensor screw (2).
  4. Pull the brake pedal position sensor straight away from the keyed hole to remove it from the bracket.
  5. Remove the brake pedal position sensor from the vehicle.
