Core, Heater: Removal

NOTE:

The Heating, Ventilation and Air Conditioning (HVAC) housing assembly must be removed from vehicle for service of the heater core.

  1. Remove the HVAC housing assembly and place it on a workbench. Refer to HOUSING, HVAC, REMOVAL .

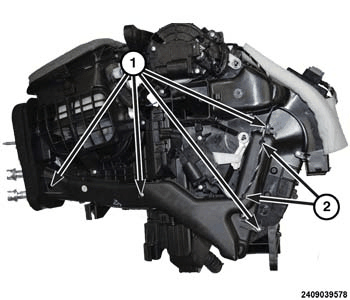

    GC0159519Courtesy of CHRYSLER GROUP, LLC
  2. Remove the wire harness from the retaining clips (2) on the heater core cover.
  3. Remove the retaining fasteners (1) from the heater core tubing cover and remove the heater core tubing cover from the left side of HVAC housing.

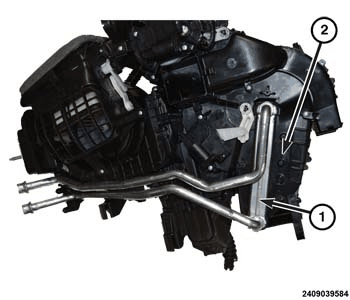

    GC0159939Courtesy of CHRYSLER GROUP, LLC
  4. Remove heater core (1) from the left side of HVAC housing (2).
