Panel, A-Pillar Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Apply protective tape to lower A-pillar trim and to defroster grille, to prevent scaring of either surfaces.

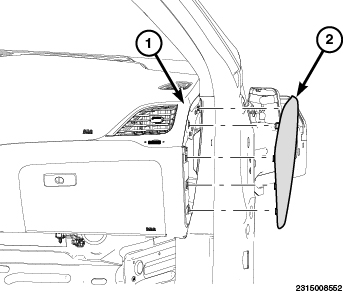

Remove instrument panel end cap (2) by using a (special tool #C-4755, Trim Stick) or equivalent, to disengage clips holding end cover to instrument panel (1).

Courtesy of CHRYSLER GROUP, LLC

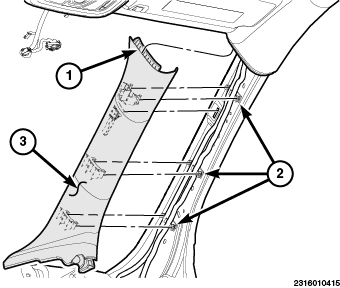

Using a trim stick or equivalent, release the push-pin fasteners (1) and the retaining tabs (2) and remove closeout panel (3) located between the A-pillar trim and the front scuff plate.
CAUTION:
Be careful not to crease the headliner.

Courtesy of CHRYSLER GROUP, LLC

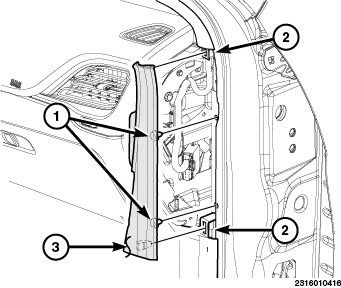

Starting at the top near the headliner, flex the A-pillar trim away from the sheet metal letting the A-pillar trim upper pocket to be released from the headliner. The A-pillar will still be inserted between the instrument panel and the sheet metal at the bottom, and still attached via the tether clip.

Courtesy of CHRYSLER GROUP, LLC

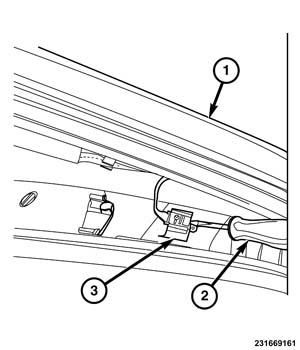

Using a flat bladed screwdriver or equivalent tool (2) disconnect the "tether" clip (3) from the A-pillar trim. It will still remain connected to the sheet metal body.
Slide the A-pillar trim (1) upwards and away from the instrument panel until it is clear of the vehicle.
