Grille, Defroster: Removal

GC0187208Courtesy of CHRYSLER GROUP, LLC

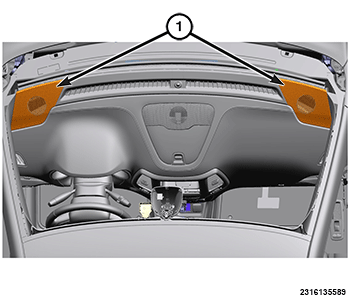

  1. Using a (special tool #C-4755, Trim Stick) or equivalent, remove the speaker covers (1).
    GC0187159Courtesy of CHRYSLER GROUP, LLC

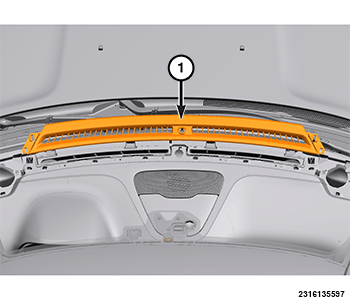

  2. Using a trim stick or equivalent, remove the defroster grille (1).
  3. Disconnect the sun sensor wire harness connector, if equipped.
