Removal And Installation: Installation
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

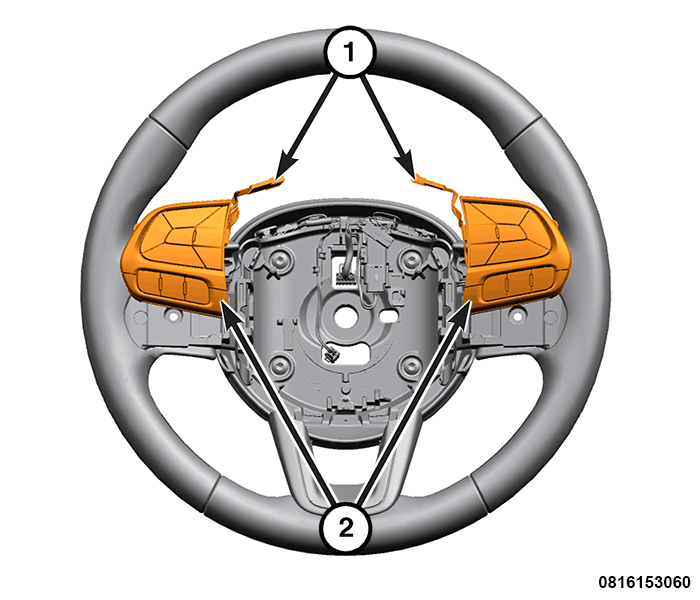

- Position the Electronic Vehicle Information Center (EVIC) switch pod (2) to the front of the steering wheel and connect the wire harness connectors (1).
- Install the EVIC switches (2) into the steering wheel.

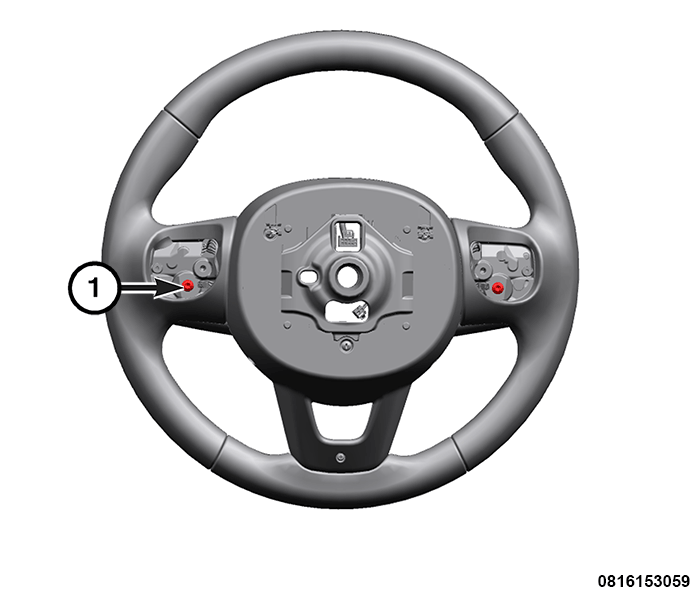

- Install and securely tighten the fasteners (1) that secure the switches to the steering wheel.
- Install the remote radio switch. Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .
- Install the drivers air bag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
