Removal And Installation: Installation

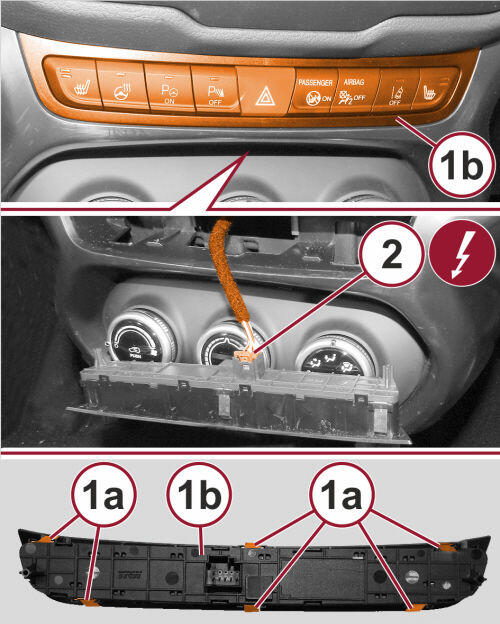

GC0163636Courtesy of CHRYSLER GROUP, LLC
  1. Position the switch pod (1b) to the instrument panel and connect the wire harness connector (2) to the switch pod (1b).
  2. Install the switch pod (1b) into the instrument panel. Be certain the switch pod retaining tabs (1a) fully engage the instrument panel.
  3. Install the radio. Refer to RADIO, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
