Water Pump Drive Sprocket

REMOVAL

1. Remove the timing chain guides. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

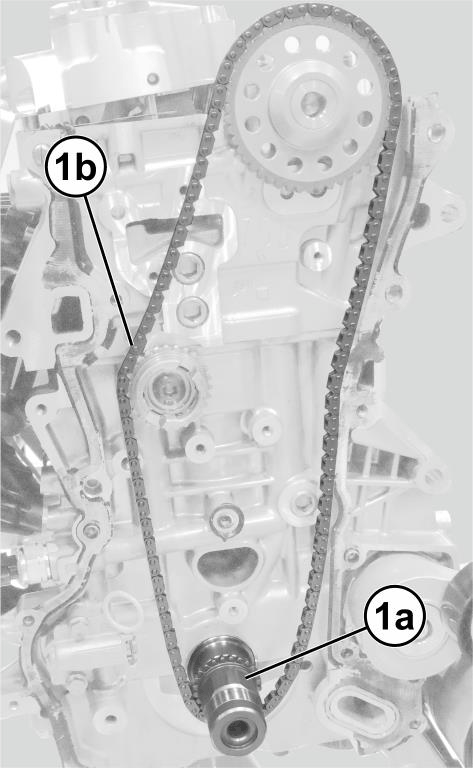

2. Remove the crankshaft sprocket (1a) along with the timing chain (1b).

   Courtesy of CHRYSLER GROUP, LLC

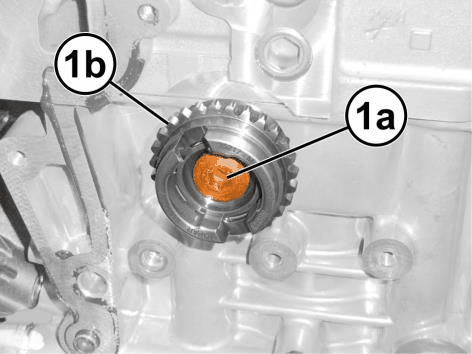

3. Remove the bolt (1a) and the water pump drive sprocket (1b).

INSTALLATION

1. Install the water pump drive sprocket and securely tighten the water pump drive sprocket bolt.
2. Install the timing chain and crankshaft sprocket.
3. Install the timing chain guides. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION  .
