Turbocharger Heat Shield

REMOVAL

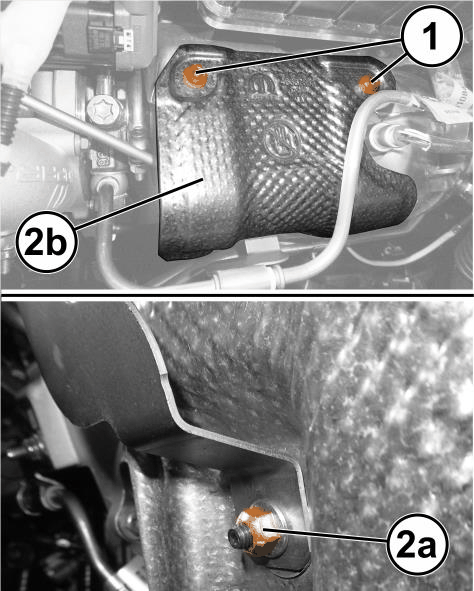

GC0190075Courtesy of CHRYSLER GROUP, LLC
  1. Remove the upper bolts (1) from the turbocharger heat shield.
  2. Remove the nut (2a) and the turbocharger heat shield (2b).

INSTALLATION

  1. Install the turbocharger heat shield and securely tighten the nut.
  2. Install and securely tighten the upper bolts.
