Description And Operation

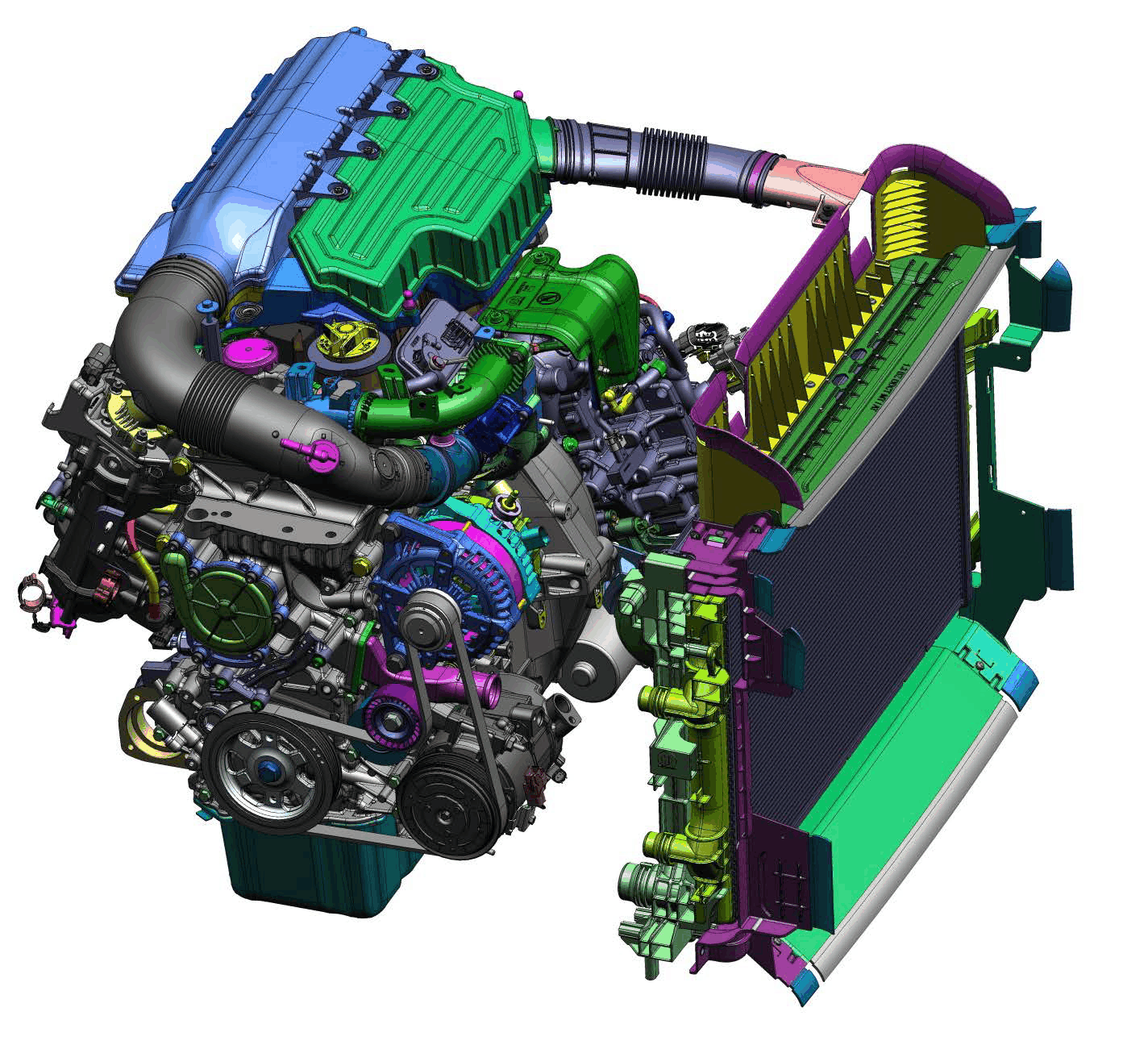

The air inlet system consists of the following components:
- Radiator air manifold
- Dirty air inlet sleeve to air cleaner
- Air cleaner
- Inlet sleeve to turbocharger
- Turbocharger
- Air delivery sleeve to turbocharger
- Air delivery sleeve to turbocharger
- Throttle body
- Intake manifold
The air cleaner is positioned in a plastic casing located directly underneath the engine cover (over the tappet cover).
