Panel, D-Pillar Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the rear header trim panel. Refer to PANEL, HEADER, REAR, REMOVAL .
Using a trim stick or equivalent, loosen the top of the quarter trim panel from the D-pillar trim panel.

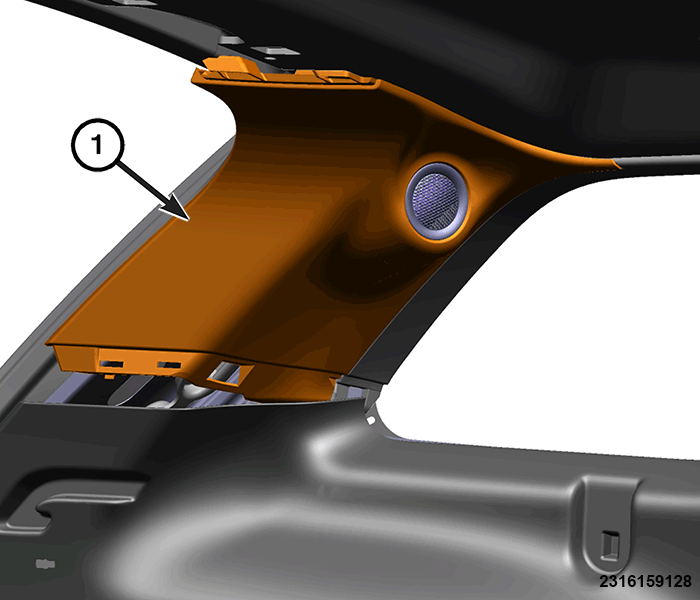

Using a trim stick or equivalent, release the retainers and loosen the D-pillar trim panel (1).
Using a small flat bladed tool, release the tether from the backside of the D-pillar trim panel.
If equipped, disconnect the speaker electrical connector.

Courtesy of CHRYSLER GROUP, LLC
If removing the C-pillar to D-pillar bridge molding, use a trim stick or equivalent to release the molding retainers.

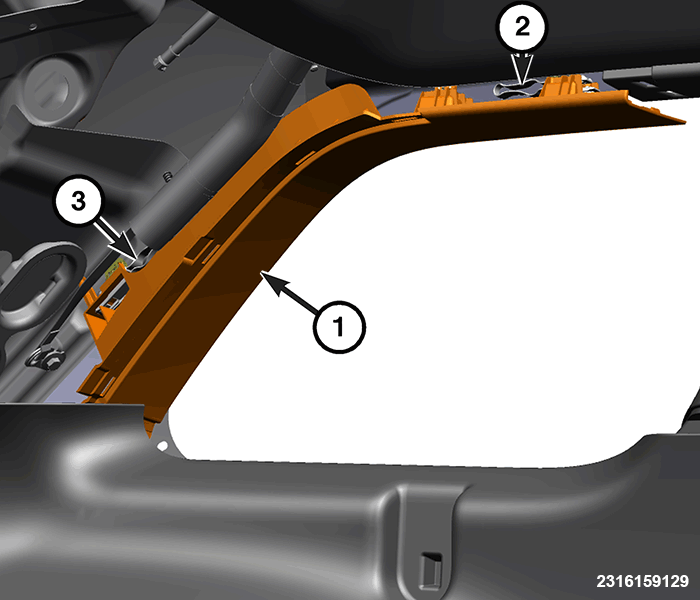

Using a trim stick release the tethers (2 and 3) from the backside of the bridge molding (1) and remove molding.
