Door, Glove Box: Removal

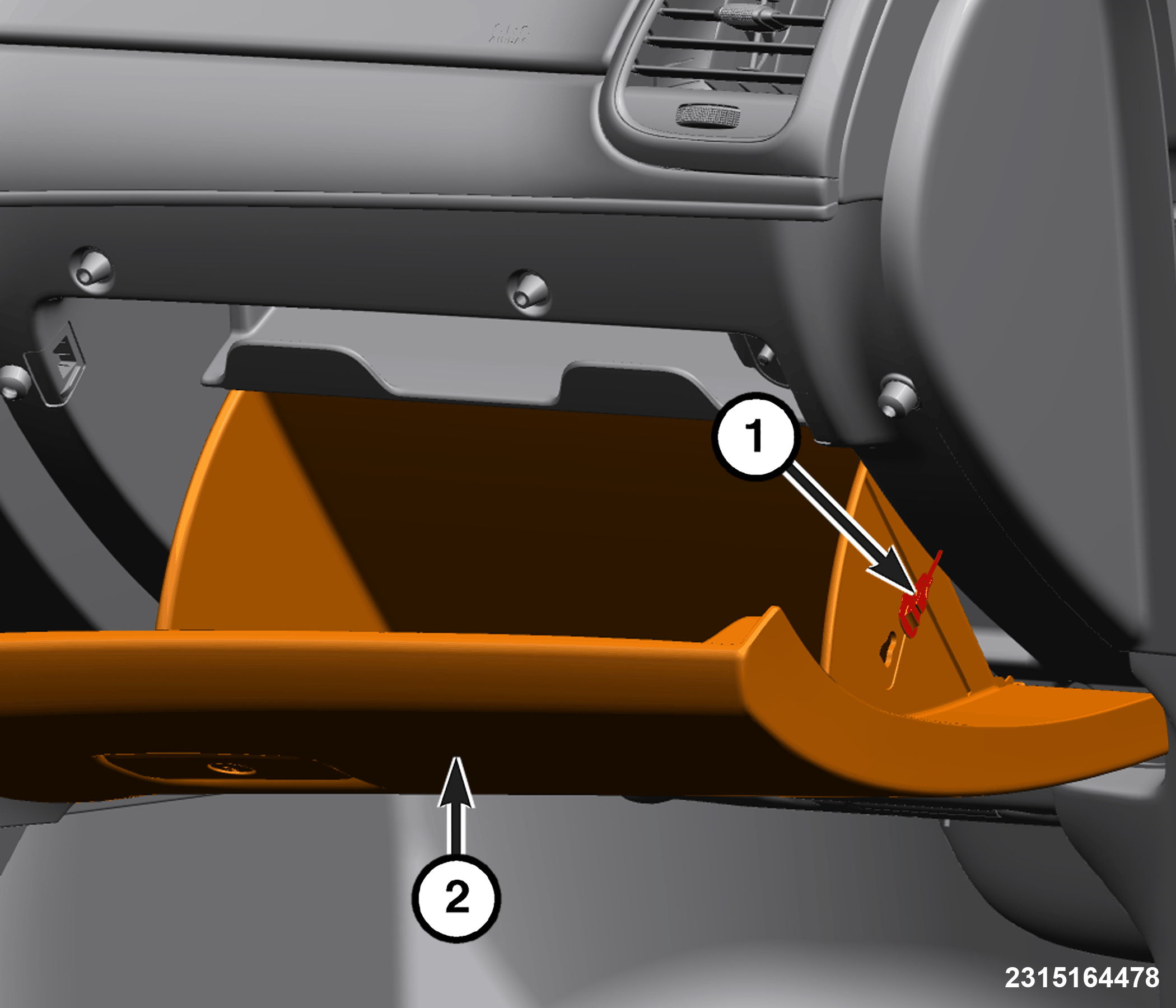

- Open the glove box. Separate the glove box damper (1) from the glove box door (2) by sliding the clip towards the rear of the vehicle and releasing it from the bin.

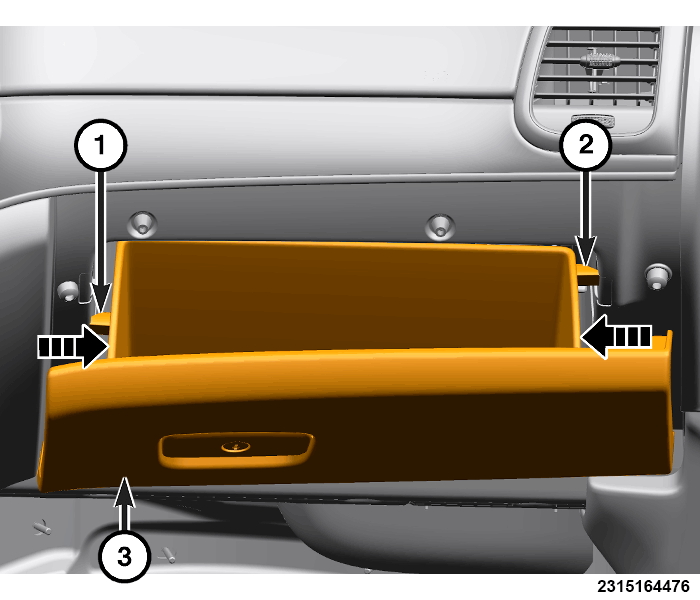

- Carefully squeeze inward on the inboard open stop tab (1) and the release it from the glove box housing.
- Carefully squeeze inward on the outboard open stop tab (2) and the release it from the glove box housing.

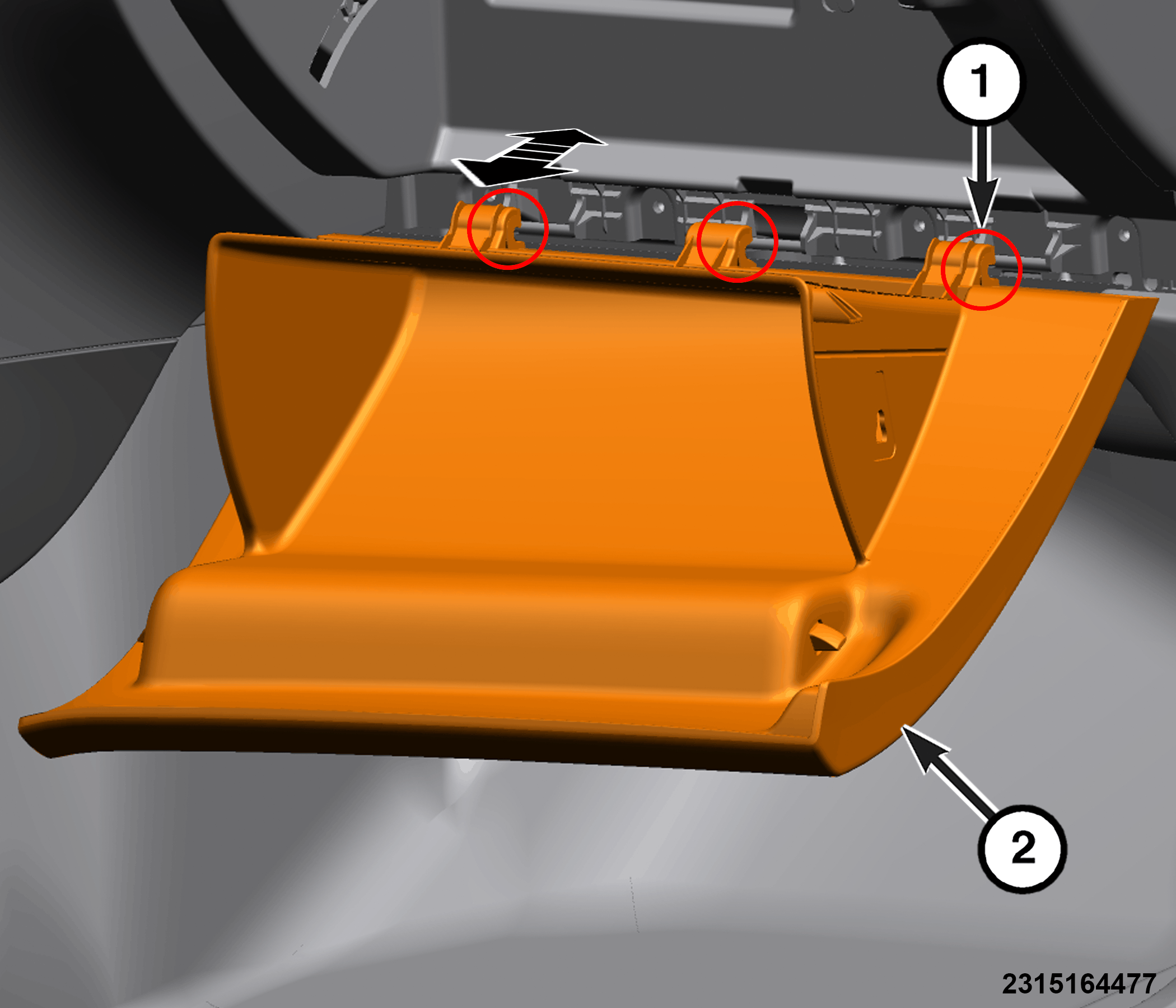

- Rotate the glove box door (2) down and release the door hinges (1) from the glove box housing. Remove the glove box door (2) from vehicle.
