Transmission Oil Cooler

REMOVAL

1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION, 5.7L .
2. Remove the electric cooling fan. Refer to FAN, COOLING, ELECTRIC, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   1 - Left Side Radiator Support Bracket Bolt

   2 - Left Side Radiator Support Bracket

   3 - Right Side Radiator Support Bracket Bolt

   4 - Right Side Radiator Support Bracket

   5 - Radiator

3. Remove the left side radiator support bracket bolt and the left side radiator support bracket.
4. Remove the right side radiator support bracket bolt and the right side radiator support bracket.
5. Remove the upper radiator air shroud.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Transmission Cooler Lines

6. Using the (special tool #9546, Disconnect Tool), disconnect the transmission oil cooler lines.

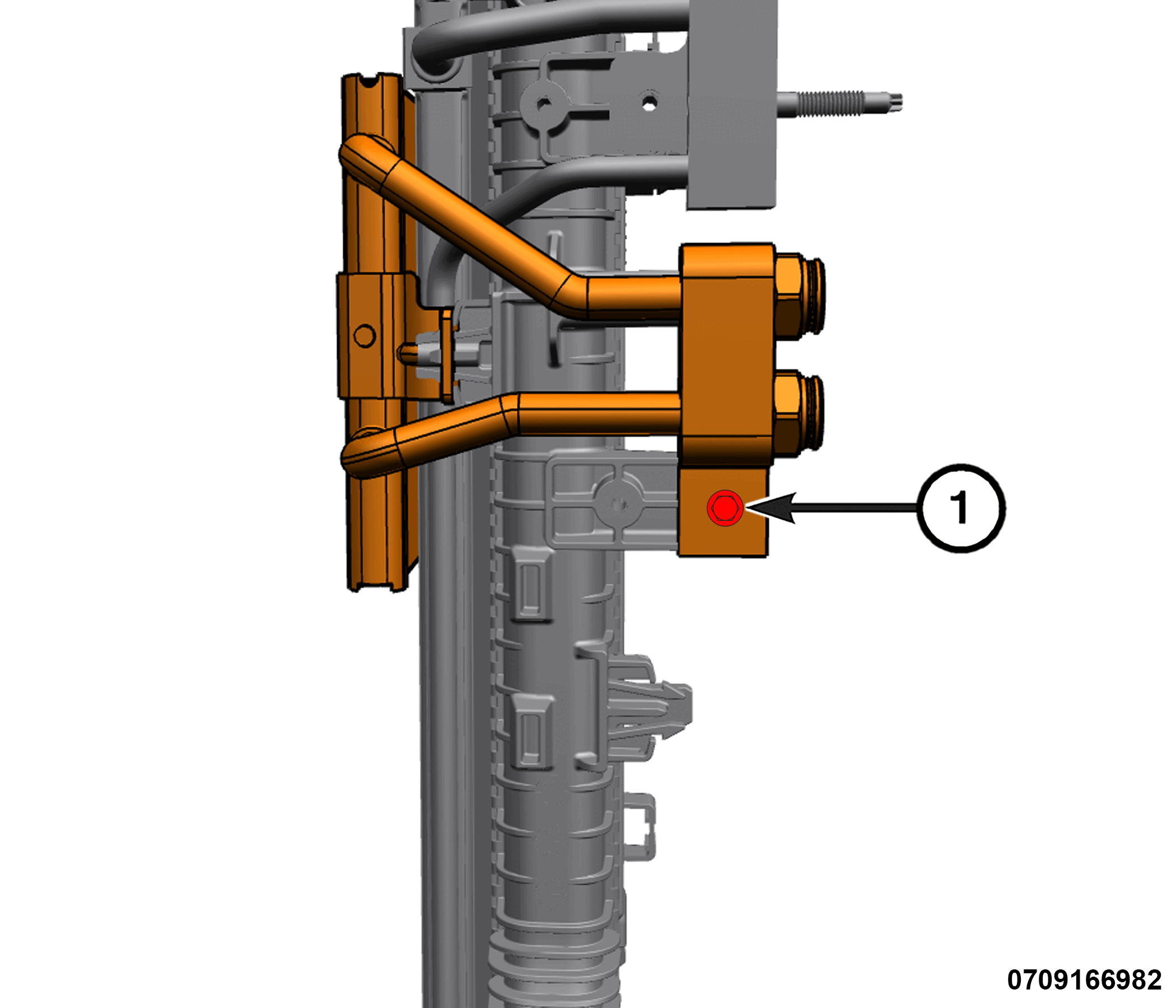

   Courtesy of CHRYSLER GROUP, LLC

   1 - Transmission Cooler Manifold Bolt

7. Remove the transmission oil cooler manifold bolt securing the transmission oil cooler manifold to the radiator.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Lock Tabs

   2 - Transmission Cooler

8. Release the lock tabs and remove the transmission oil cooler.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Install the transmission oil cooler manifold bolt securely.
• Perform the transmission CHECK OIL LEVEL procedure Refer to CHECK TRANSMISSION OIL LEVEL  .
