Removal And Installation: MPT3028C

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the transmission belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
3. Mark the rear driveshaft and flanges for reassembly alignment. Remove the rear driveshaft from the vehicle. Refer to SHAFT, DRIVE, REAR, REMOVAL AND INSTALLATION .
4. Support the transfer case and transmission.
5. Remove the transfer case skid plate. Refer to PLATE, SKID, REMOVAL AND INSTALLATION .
6. Remove the transmission crossmember. Refer to CROSSMEMBER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   1 - Driveshaft To Flange Bolts

   2 - Driveshaft

7. Mark the front driveshaft and transfer case flange for reassembly alignment.
8. Remove and discard  the front driveshaft to transfer case flange bolts. Separate the front driveshaft from the flange. Push the shaft in toward the front differential, support and set aside.

   Courtesy of CHRYSLER GROUP, LLC

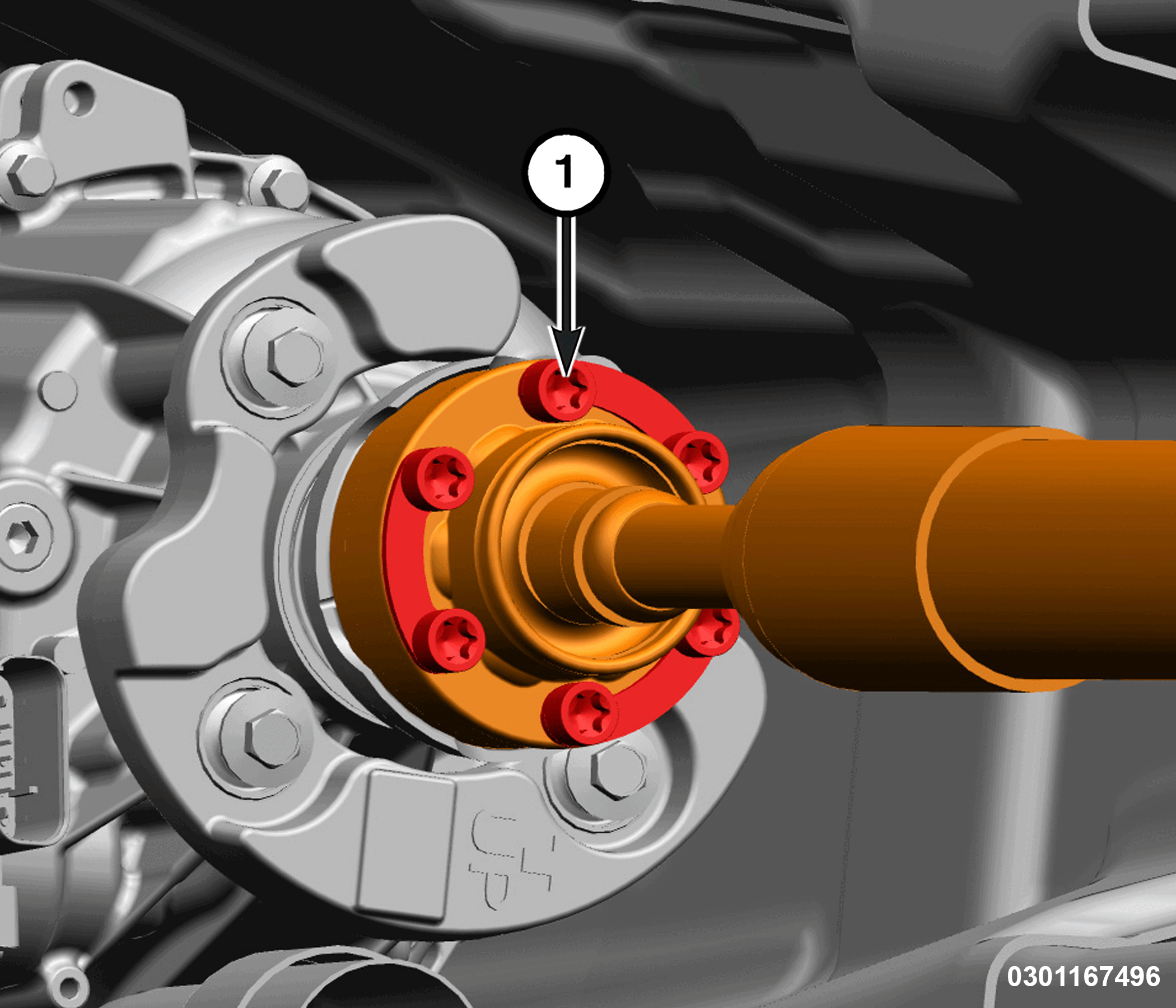

   1 - Driveshaft To Flange Bolts

9. Mark the rear driveshaft and transfer case flange for reassembly alignment.
10. Remove and DISCARD  the rear driveshaft to transfer case flange bolts. Separate the rear driveshaft from the flange. Push the shaft in toward the front differential, support and set aside.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Shift Motor M8 Cover Bolt

    2 - Shift Motor M10 Cover Bolts

11. Remove the shift motor cover bolts and cover.

    Courtesy of CHRYSLER GROUP, LLC

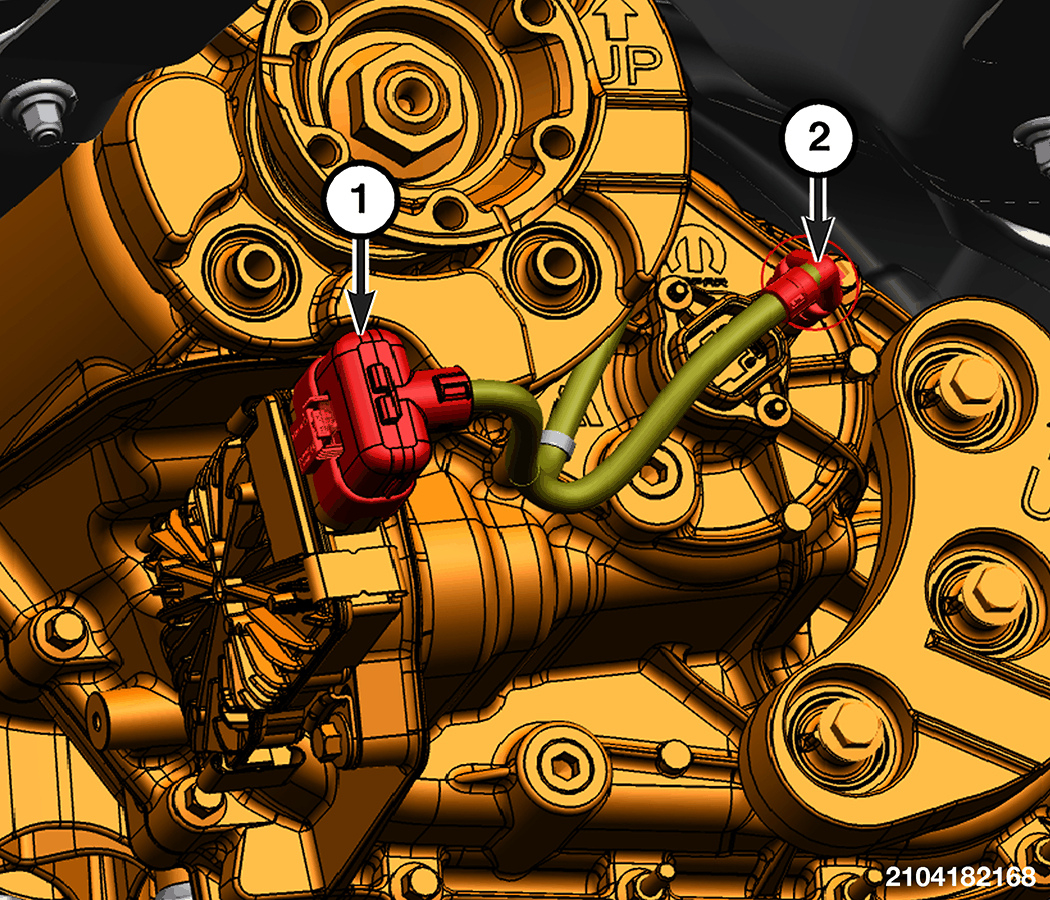

    1 - Transfer Case Shift Motor Wire Harness Connector

    2 - Transfer Case Position Sensor Wire Harness Connector

12. Disconnect the transfer case shift motor wire harness connector.
13. Disconnect the transfer case position sensor wire harness connector.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Transfer Case to Transmission Bolts (Left Side)

    Courtesy of CHRYSLER GROUP, LLC

    1 - Transfer Case to Transmission Bolts (Right Side)

14. Remove the left and right side transfer case to transmission bolts.
15. Remove the transfer case from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

During installation torque the following fasteners to specification:

• Lightly grease the output shaft splines of the transmission.
• During installation of the driveshafts, align the previously created marks on the driveshafts with the marks on the output flanges.
• If necessary, fill the transfer case to the proper fluid level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
