Resetting Timing Chain TENSIONER

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

1 - Washer

2 - Spring

3 - Plunger

4 - Tensioner Body

NOTE:

Verify that the tensioner is assembled correctly.

Install the washer, spring, and plunger inside the tensioner body.

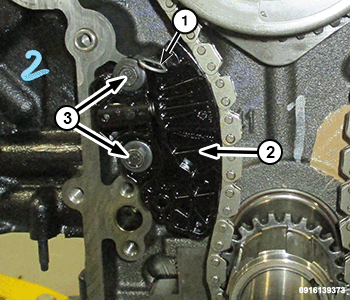

Courtesy of CHRYSLER GROUP, LLC

1 - Tensioner Pin
Squeeze the tensioner body and movable guide shoe together and install the Tensioner Pin (special tool #8514A, Pins, Tensioner).
