Oil Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
DESCRIPTION

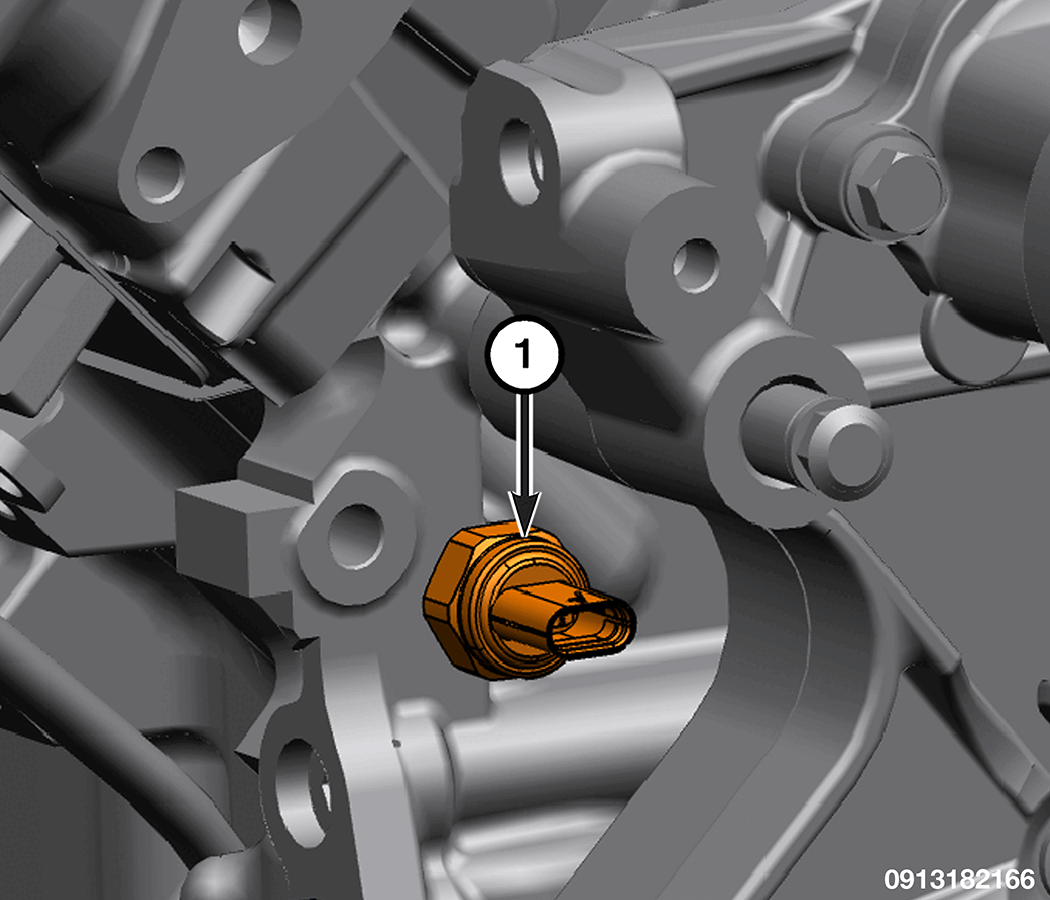

| 1 - Oil Pressure Sensor |
The oil pressure sensor uses the following three circuits:
- Signal circuit to the PCM
- Sensor ground circuit from the PCM
- 5 volt reference circuit from the PCM
The oil pressure sensor returns a voltage signal back to the PCM with reference to oil pressure. Ground for the sensor is supplied by the PCM.
The oil pressure sensor is located on the right front of the engine by the generator.
