Left Idler Pulley And Bracket

REMOVAL

1. Partially remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

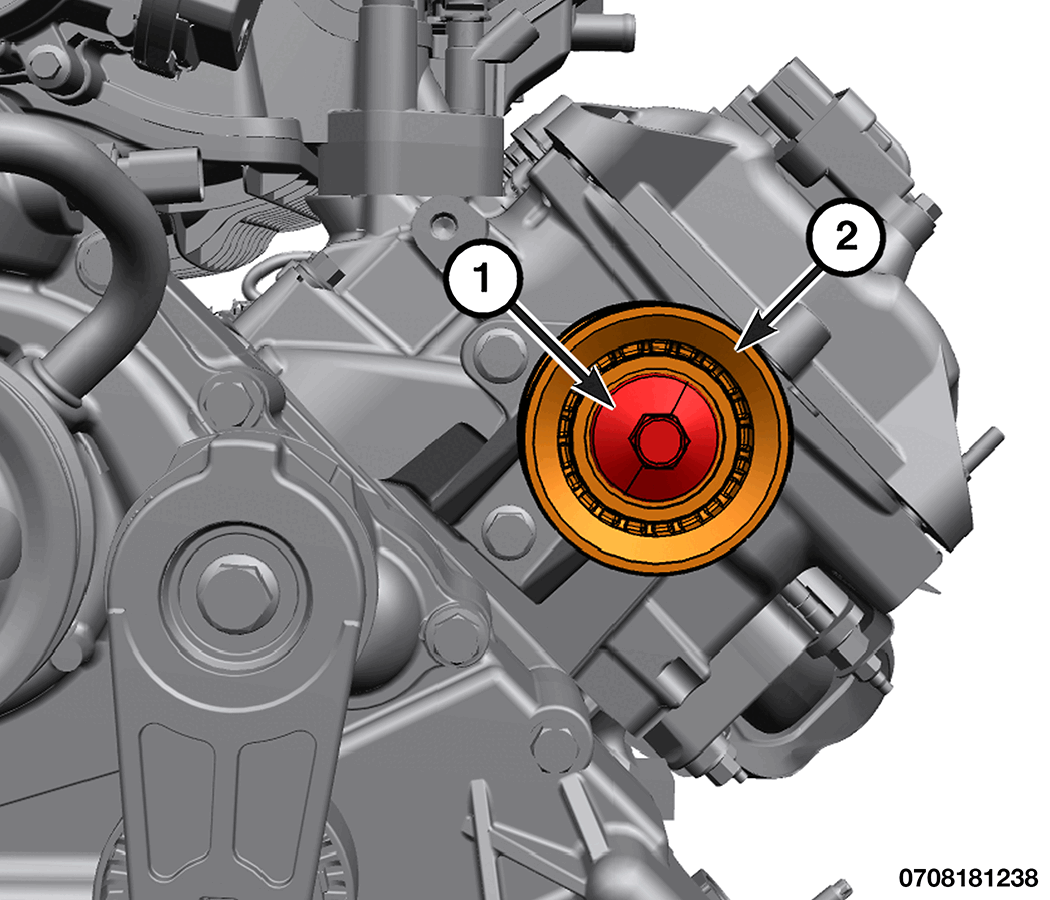

   Courtesy of CHRYSLER GROUP, LLC

   1 - Idler Pulley Bolt

   2 - Idler Pulley

2. Remove the idler pulley bolt and the idler pulley.

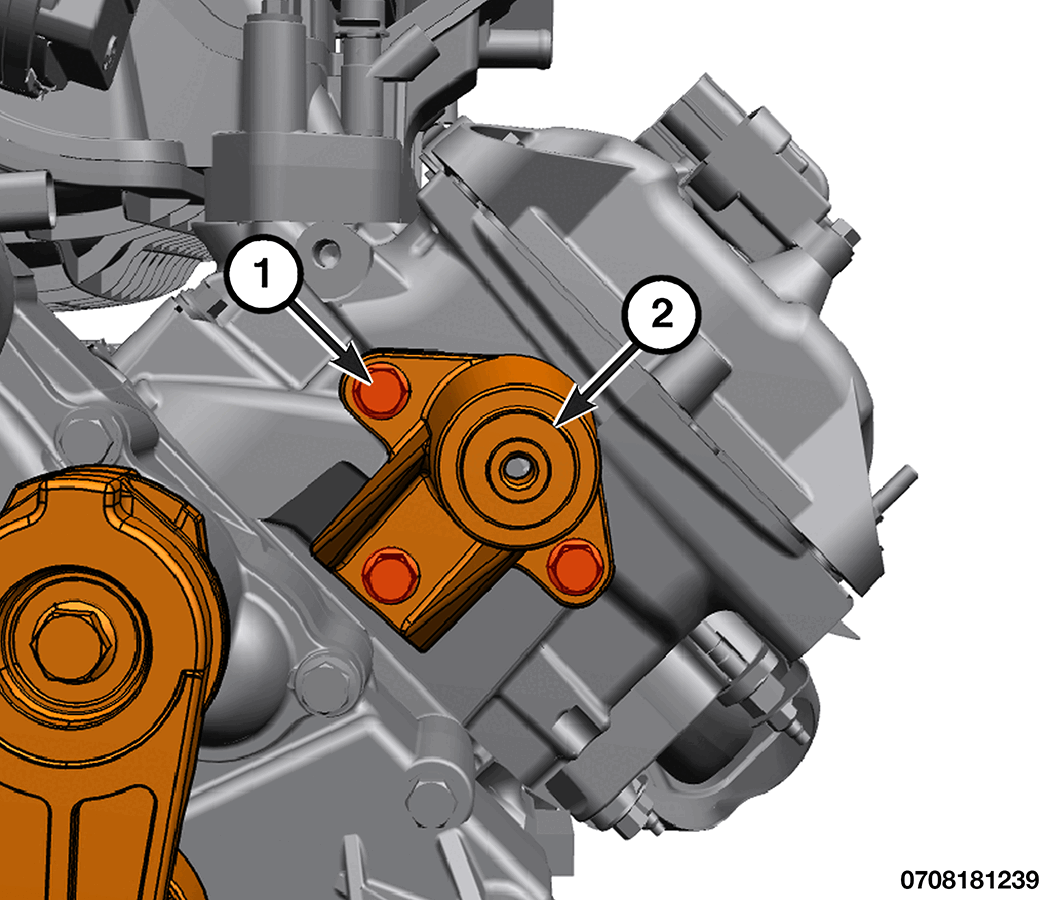

   Courtesy of CHRYSLER GROUP, LLC

   1 - Idler Pulley Bracket Bolts

   2 - Idler Pulley Bracket

3. If necessary, remove the idler pulley bracket bolts and the idler pulley bracket.

INSTALLATION

1. If removed, install the idler pulley bracket and tighten the idler pulley bracket bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the idler pulley and tighten the idler pulley bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
3. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
