Left Rear Muffler Heat Shield

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

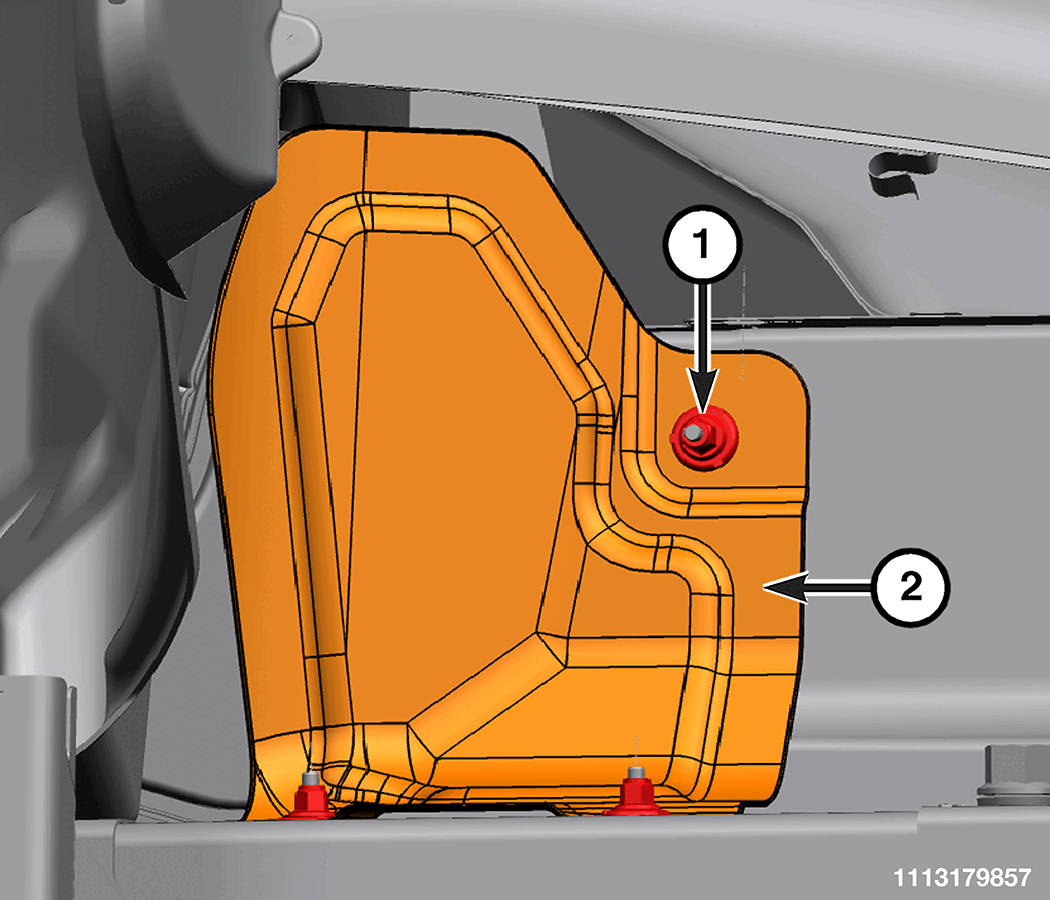

   Courtesy of CHRYSLER GROUP, LLC

   1 - Heat Shield Nuts

   2 - Left Rear Muffler Heat Shield

3. Remove the nuts and the left rear muffler heat shield.

INSTALLATION

1. Install the left rear muffler heat shield and tighten the nuts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
3. Remove the support and lower the vehicle.
4. Start the engine and inspect for exhaust leaks. Repair the exhaust leaks as necessary.
