Headlamp Alignment
NOTE:
Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern 2.5 centimeters (1 inch) below the headlamp horizontal reference line on the alignment screen. No horizontal (right/left) adjustment is required for this headlamp beam pattern. The high beam pattern will be correct when the low beams are properly aimed.

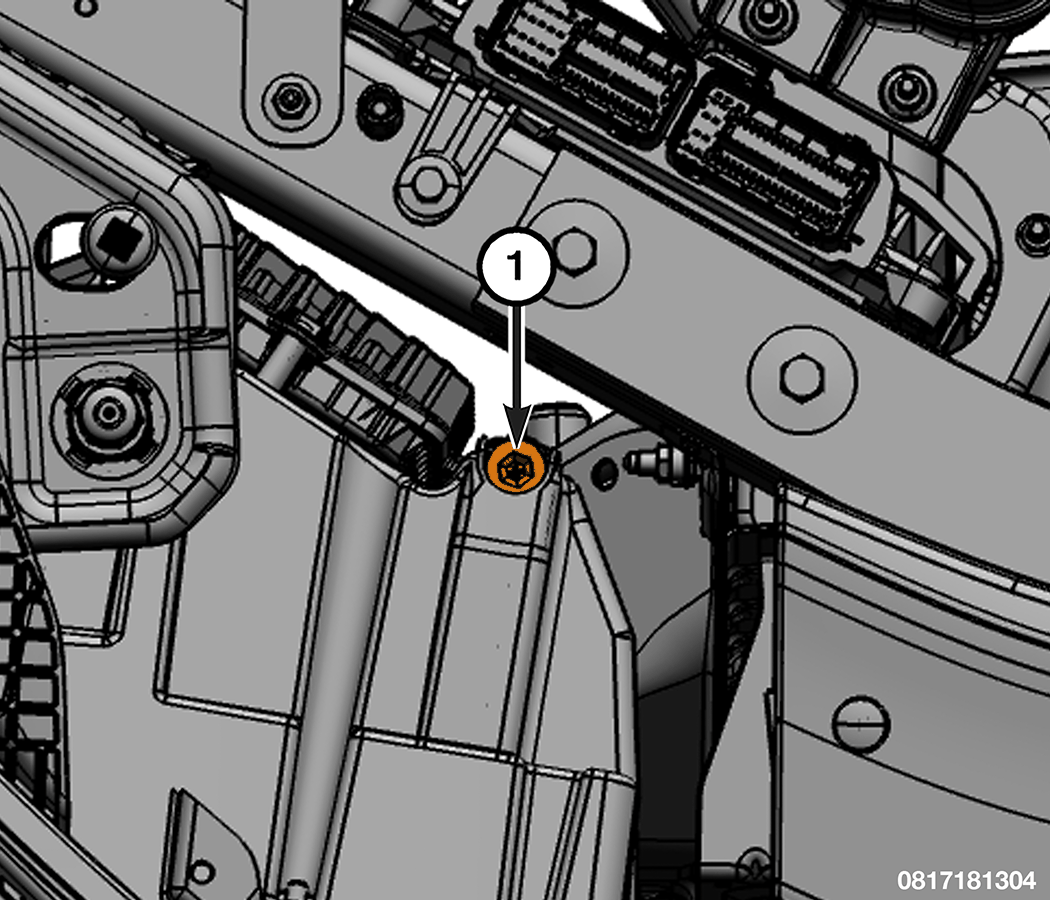

- The vertical adjustment screw (1) for each headlamp is accessible through a hole located in a raised rectangular formation, with a raised arrow pointing to it. These features are stamped into the sheet metal of each front fender ledge near the front of the vehicle.
- Turn the headlamps ON and select the LOW beams.
- Rotate the headlamp vertical adjustment screw on the back of each front lamp unit to adjust the beam height as required.
