Fog Lamp Alignment

NOTE:

A properly aimed front fog lamp will project a pattern on the alignment screen 10 centimeters (4.0 inches) below the fog lamp centerline and straight ahead of the lamp.

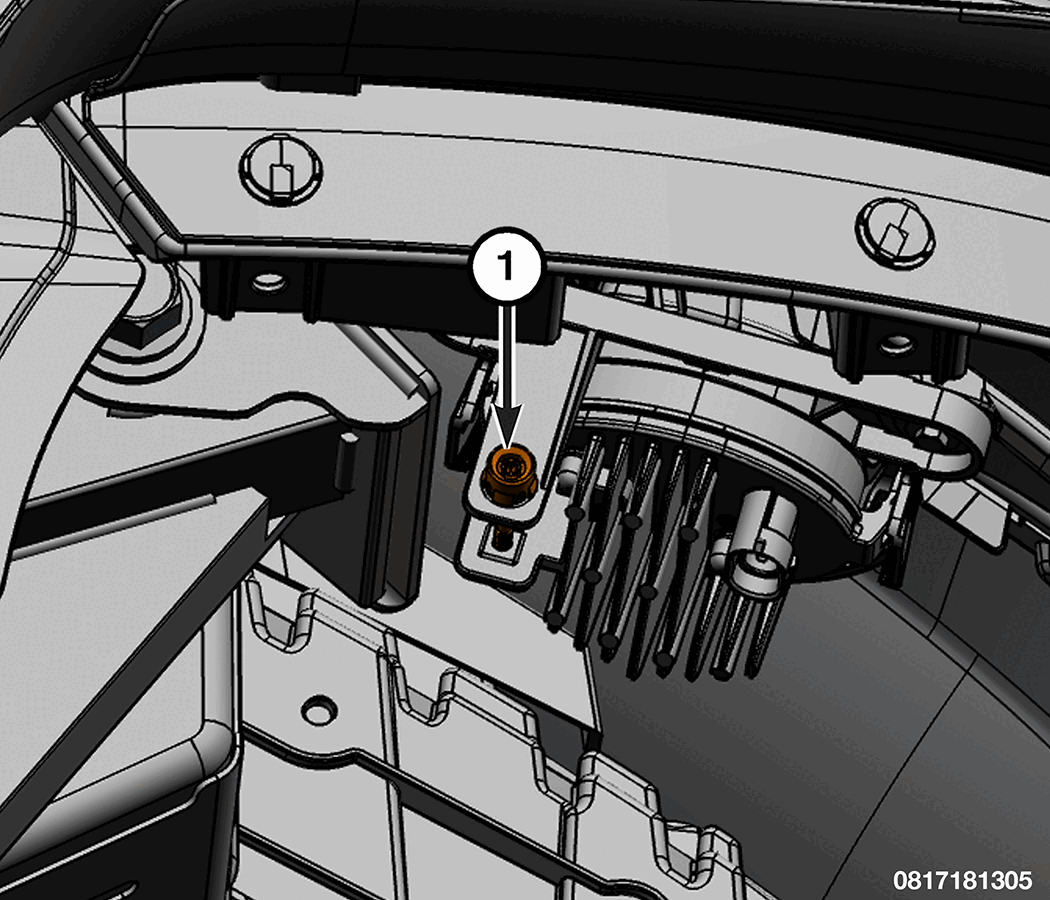

GC0200910Courtesy of CHRYSLER GROUP, LLC
  1. Turn the fog lamps ON.
  2. Rotate the thumbwheel screw (1) located behind the bumper on the back of each fog lamp unit to adjust the beam height as required.
