Switch Bank Pod

REMOVAL

1. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .

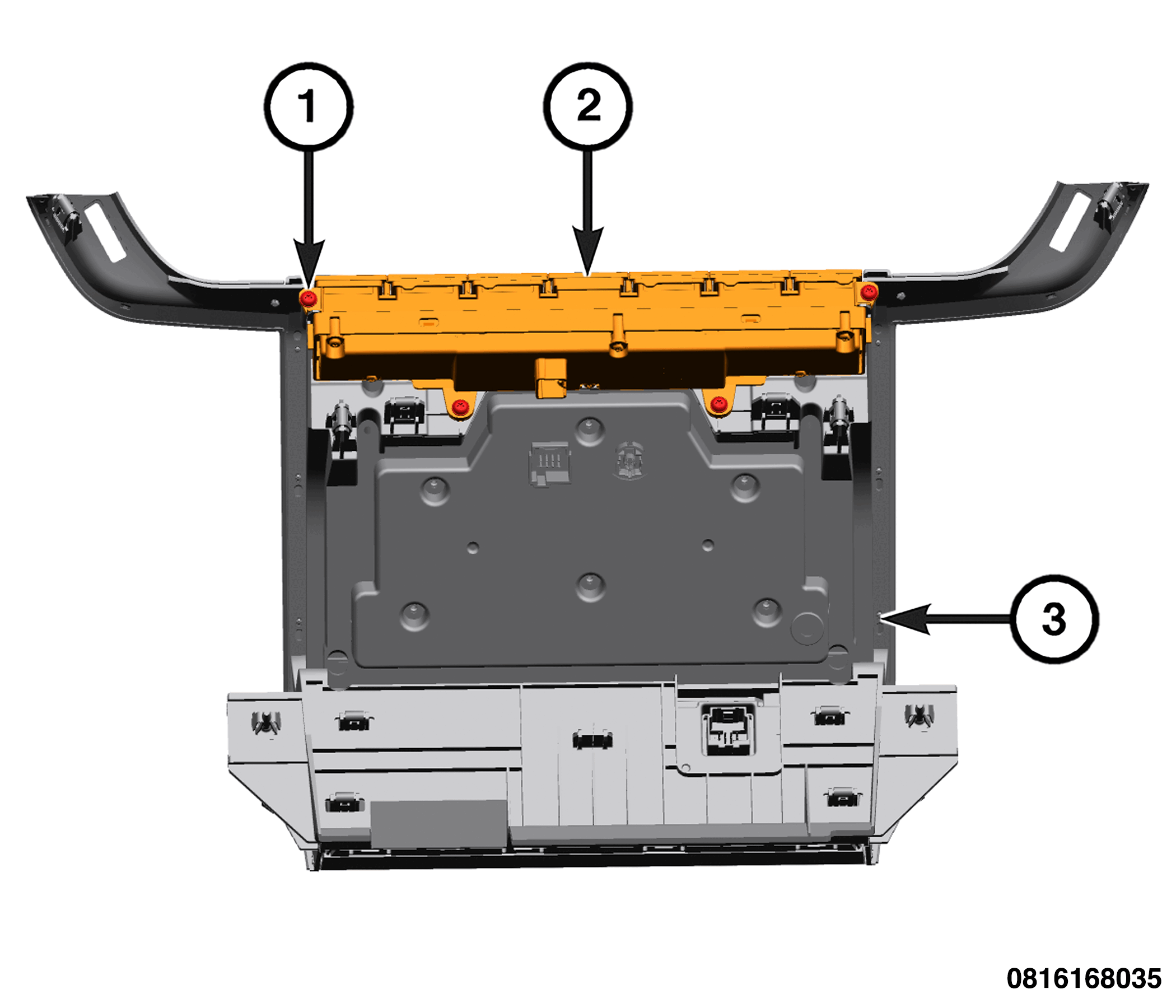

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Switch Bank Pod

   3 - Bezel

2. Remove the fasteners securing the switch bank pod to the center instrument panel bezel.

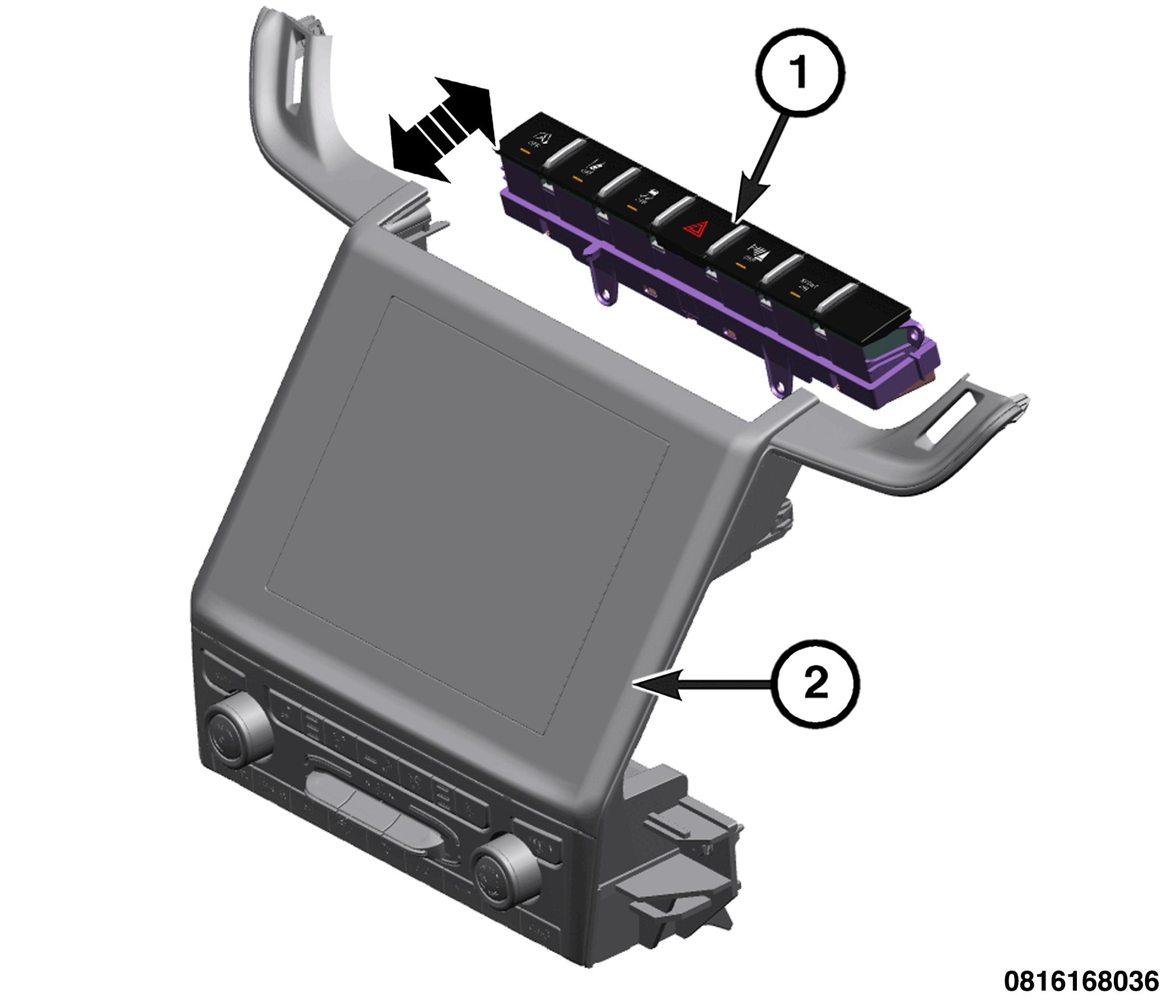

   Courtesy of CHRYSLER GROUP, LLC

   1 - Switch Bank Pod

   2 - Bezel

3. Remove the switch bank pod from the center instrument panel bezel.

INSTALLATION

1. Position the switch bank pod to the center instrument panel bezel.
2. Install and securely tighten the switch bank pod to the center instrument panel bezel fasteners.
3. Install the center instrument panel bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
