Heads Up Display

REMOVAL

1. Remove the Instrument Panel Pad. Refer to PAD, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .

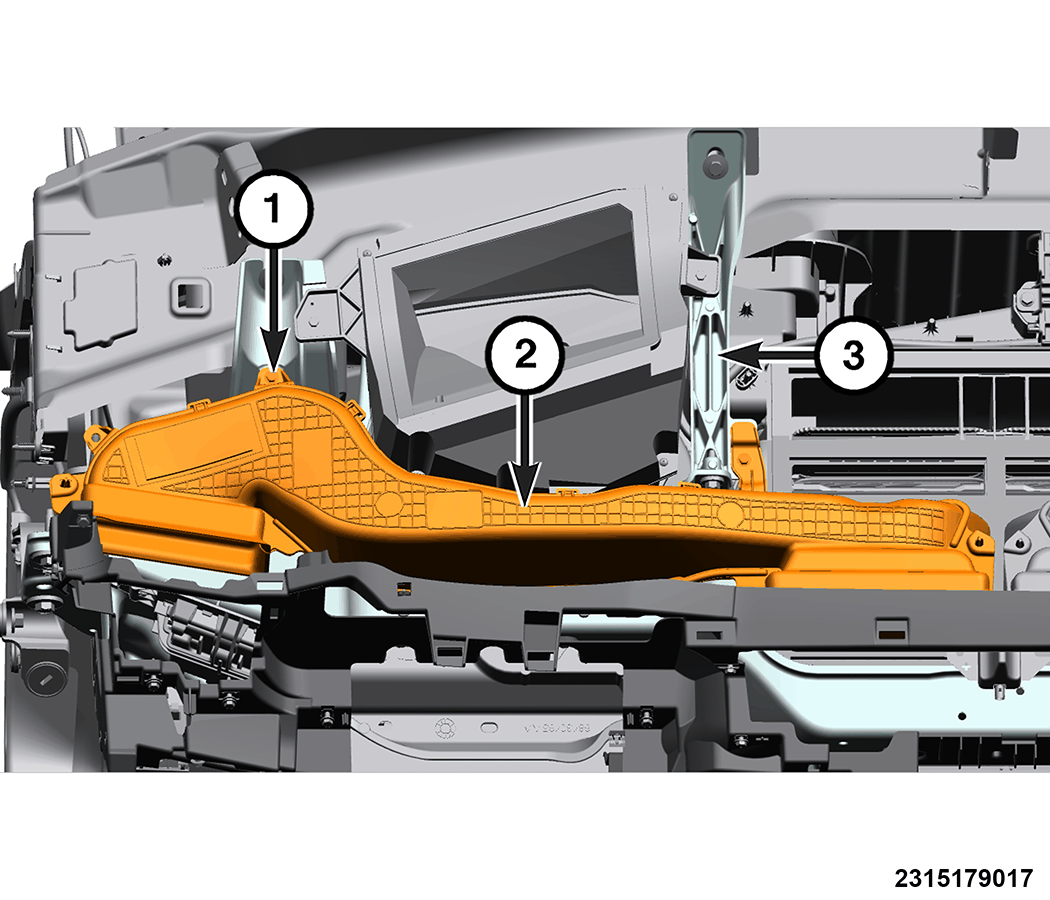

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Duct

   3 - Instrument Panel Carrier

2. Remove the fasteners securing the left upper duct to the instrument panel carrier and remove the duct.

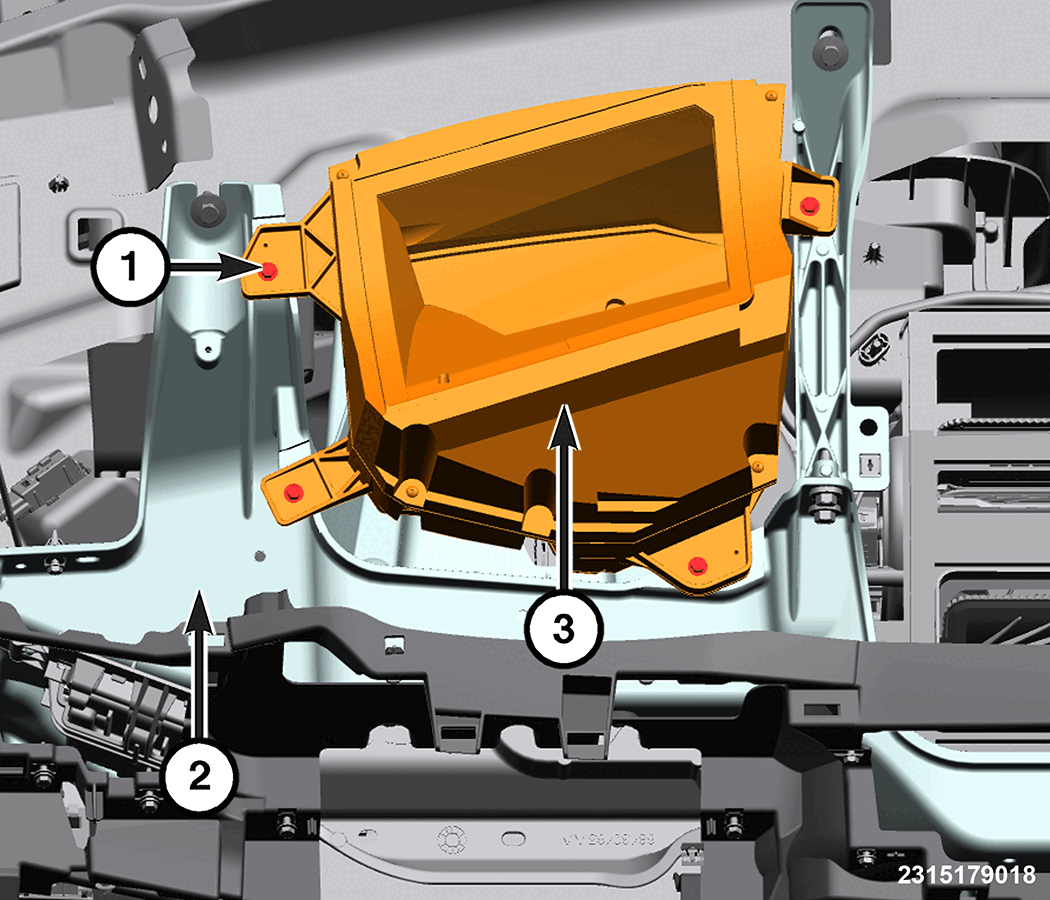

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Instrument Panel Carrier

   3 - Heads Up Display (HUD) Module

3. Remove the fasteners securing the HUD Module to the instrument panel carrier.

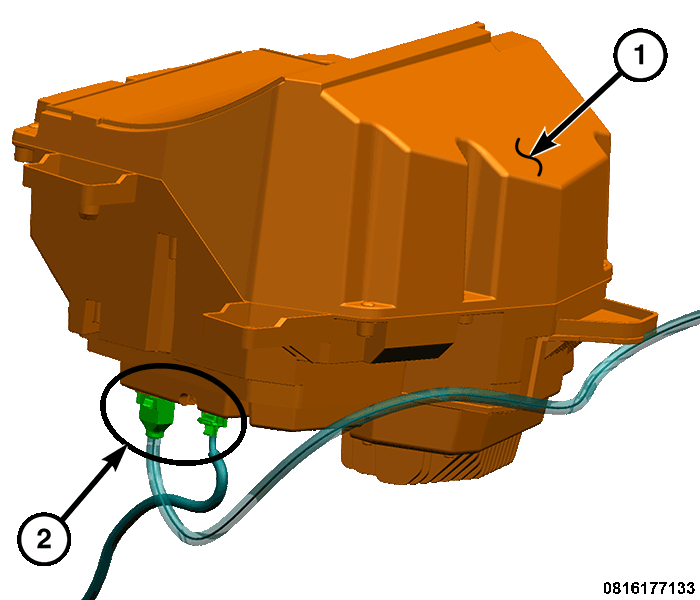

   Courtesy of CHRYSLER GROUP, LLC

   1 - HUD Module

   2 - Wire Harness Connectors

4. Lift the HUD up far enough to gain access to the wire harness connectors.
5. Disconnect the wire harness connectors and remove the HUD from the vehicle.

INSTALLATION

1. Position the HUD to the instrument panel carrier and connect the wire harness connectors.
2. Install the HUD to the instrument panel carrier.
3. Install and securely tighten the fasteners securing the HUD to the instrument panel carrier.
4. Install the left upper air duct to the instrument panel carrier.
5. Install and securely tighten the fasteners securing the left upper duct to the instrument panel carrier.
6. Install the Instrument Panel Pad. Refer to PAD, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
