Sunroof Glass Adjustments

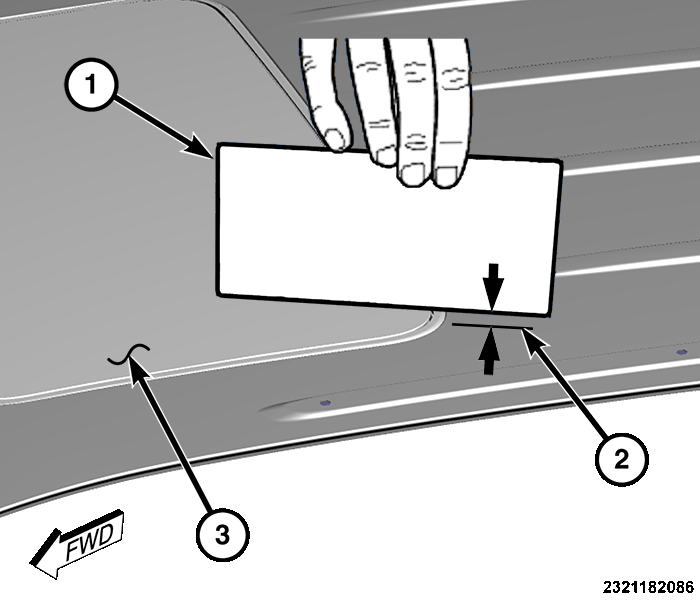

| 1 - Straight Edge |
| 2 - Front Glass Panel Gap 0.00 to -2.5 mm |
| 3 - Glass Panel Cover |
- Move the sunshade rearward to the open position.
- Move the sunroof glass panel to the fully closed position.
- Remove the mechanism covers.
- Loosen all glass attachment screws on both sides of the sunroof module such that the glass panel is adjustable in the vertical and fore-aft directions.NOTE:
Before making adjustments, tape a line 300 mm outboard from the center of vehicle. This is where flush measurements are taken.
- Adjust the fore/aft position of the sunroof glass panel by using a 4 mm plastic feeler gage between the roof flange and glass seal.
- Adjust the height of the sunroof panel while standing outside the vehicle, adjust one side at a time with one hand supporting the front corner of the glass panel.
- Using a straight edge as a guide, lift the front glass panel corner until it is between flush and slightly under flush (0.00 to -2.5 mm).
- Use your free hand to snug up the glass bolt with sufficient force (finger tight), so the weight of the glass panel corner is supported. Repeat this process on the other side of the vehicle.

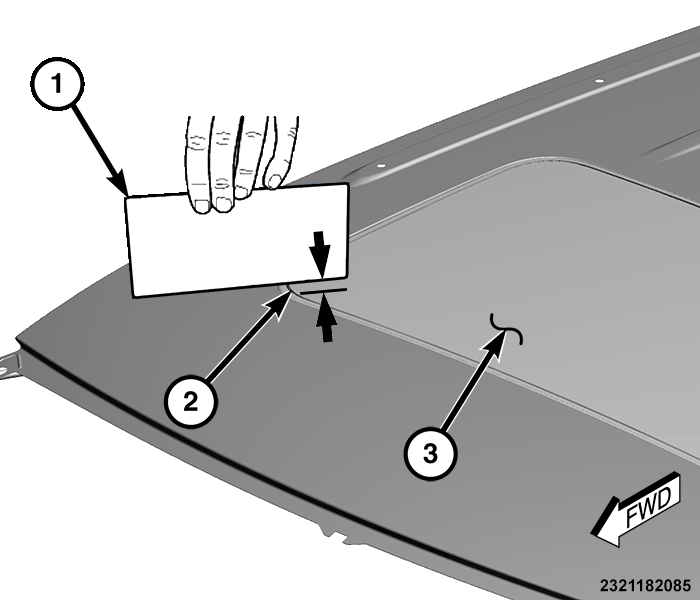

1 - Straight Edge 2 - Rear Glass Panel Gap 0.00 to +2.5 mm 3 - Glass Panel Cover NOTE:Before making adjustments, tape a line 300 mm outboard from the center of vehicle. This is where flush measurements are taken.
- Move to the rear of the sunroof glass panel. Standing outside of the vehicle, adjust one side at a time with one hand supporting the rear corner of the glass panel.
- Using a straight edge as a guide, lift the rear glass panel corner until it is between flush and slightly over flush (0.00 to + 2.5 mm).
- Use your free hand to snug up the glass bolt with sufficient force (finger tight) so the weight of the glass panel corner is supported. Repeat this process on the other side of the vehicle.
- Once the proper glass position has been achieved, tighten the glass panel attaching screws to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Check for proper fit. If not OK, repeat glass panel adjustment.
- Calibrate the sunroof. Refer to STANDARD PROCEDURE .
