Actuator-Electric Parking Brake - Left Rear (Standard) Connector End View (D2819A)

Harness-Family: EPB_Jumper_LT

Color: NATURAL

Gender: FEMALE

Part Number: 2-1355200-1

Part Description: Not Available

Connector No: D2819A

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 2

Fig 1: Actuator-Electric Parking Brake - Left Rear Connector End View (Standard)
GCWD1079506Courtesy of CHRYSLER

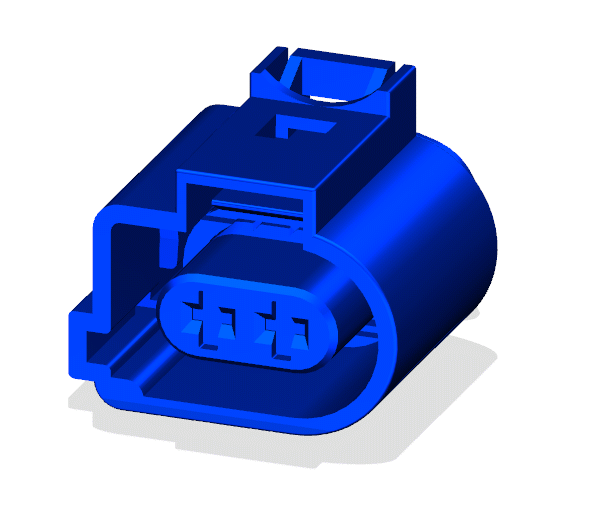

Fig 2: Actuator-Electric Parking Brake - Left Rear Isometric View (Standard)
GCWD1089846Courtesy of CHRYSLER
Fig 3: Actuator-Electric Parking Brake - Left Rear Wire Insertion View (Standard)
GCWD1010577Courtesy of CHRYSLER

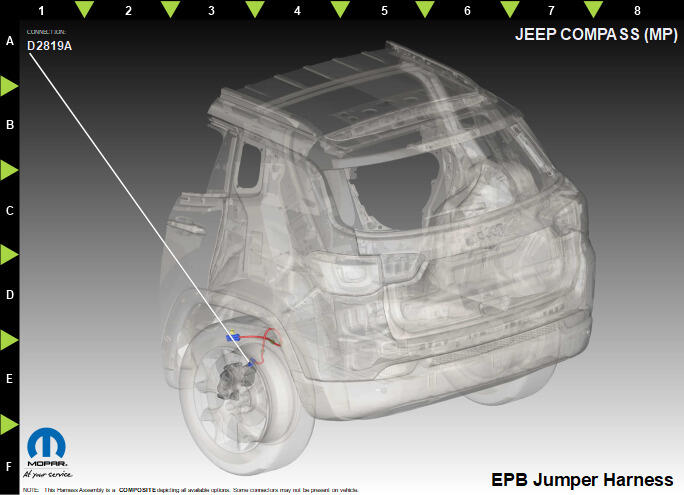

Fig 4: Actuator-Electric Parking Brake - Left Rear Component Location View (Standard)
GCWD1323690Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 B65 DG/OG 2.5 LEFT EPB ACTUATOR B CONTROL N/A
2 B63 DG 2.5 LEFT EPB ACTUATOR A CONTROL N/A
