Seat Belt-Retractor TENSIONER-Passenger C1 (Standard) Connector End View (D6676A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: F360510

Part Description: Not Available

Connector No: D6676A

Option: Standard

Repair Kit Part Number: 68199261AA

Cavity Count: 2

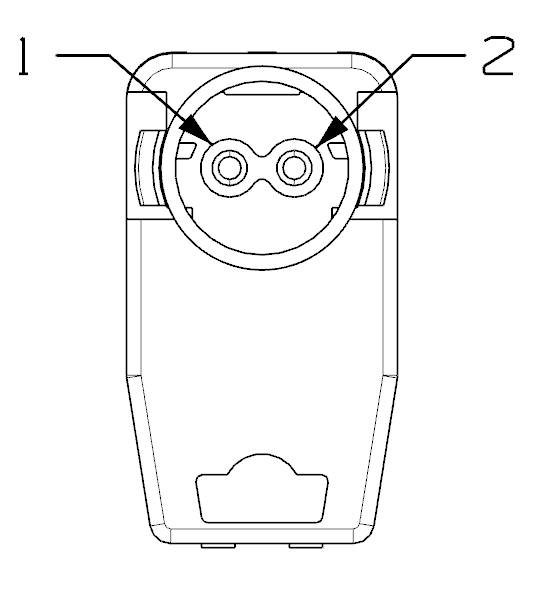

Fig 1: Seat Belt-Retractor Tensioner-Passenger C1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Seat Belt-Retractor Tensioner-Passenger C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Seat Belt-Retractor Tensioner-Passenger C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Seat Belt-Retractor Tensioner-Passenger C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R279	DB/OG	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2	N/A
2	R280	OG/VT	0.50	PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1	N/A
