Glove Box, Instrument Panel: Removal

Courtesy of CHRYSLER GROUP, LLC

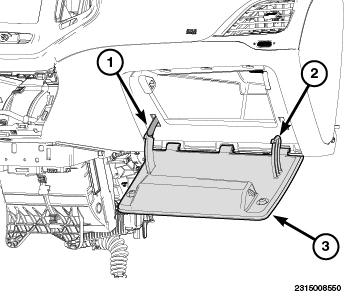

Open the glove box door and release the support arms (2) by pressing down on them and pulling out on the glove box door (3).
Release the damper arm (1) and remove the glove box door (3).

Courtesy of CHRYSLER GROUP, LLC

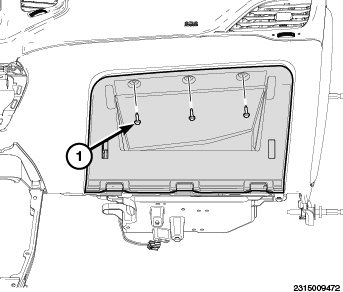

Remove the fasteners (1) at the front of the glove box.
Remove the fasteners and the silencer panel below the glove box.

Courtesy of CHRYSLER GROUP, LLC

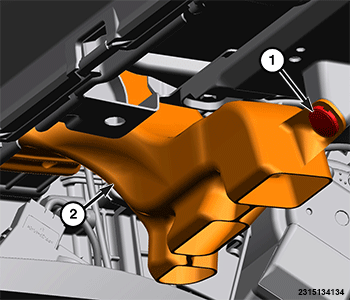

Remove the push fastener (1) and the floor duct (2) below the glove box.

Courtesy of CHRYSLER GROUP, LLC

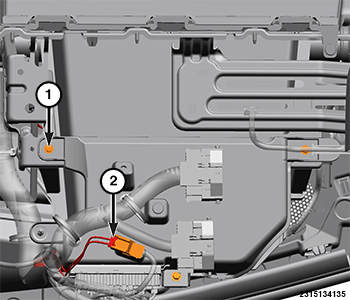

Remove the fasteners (1) located under the glove box.
NOTE:
Position necessary harnesses aside to access screws.

Courtesy of CHRYSLER GROUP, LLC

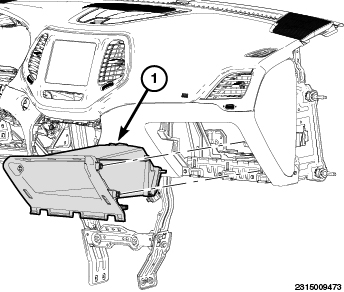

Release the side retaining clips and remove the glove box (1) from the instrument panel.
