Gauge Pack, Instrument Cluster: Description: Tachometer

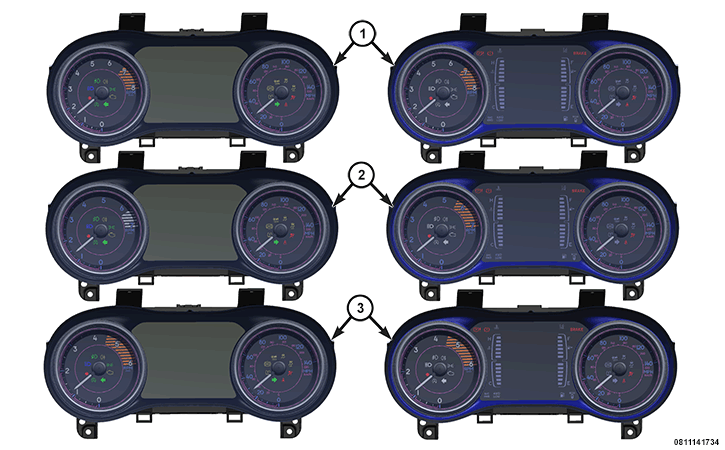

An analog tachometer is standard equipment. The gauge is located at the far left side of the IPC overlay. The tachometer for vehicles equipped with any gasoline engine except the 3.2L consists of a movable gauge needle or pointer controlled by the IPC circuitry and a fixed 200 degree scale on the gauge dial face that reads left-to-right from 0 to 7 (2). The tachometer for vehicles equipped with the 3.2L engine consists of a movable gauge needle or pointer controlled by the IPC circuitry and a fixed 200 degree scale on the gauge dial face that also reads left-to-right from 0 to 8 (1). The tachometer for vehicles equipped with the 2.2L diesel engine consists of a movable gauge needle or pointer controlled by the IPC circuitry and a fixed 200 degree scale on the gauge dial face that also reads left-to-right from 0 to 6 (3). The text RPM x1000 imprinted on the cluster overlay identifies that each number on the tachometer scale is to be multiplied by 1000 rpm.
