Engine Temperature
The standard equipment engine temperature gauge is located in the IPC near the center.

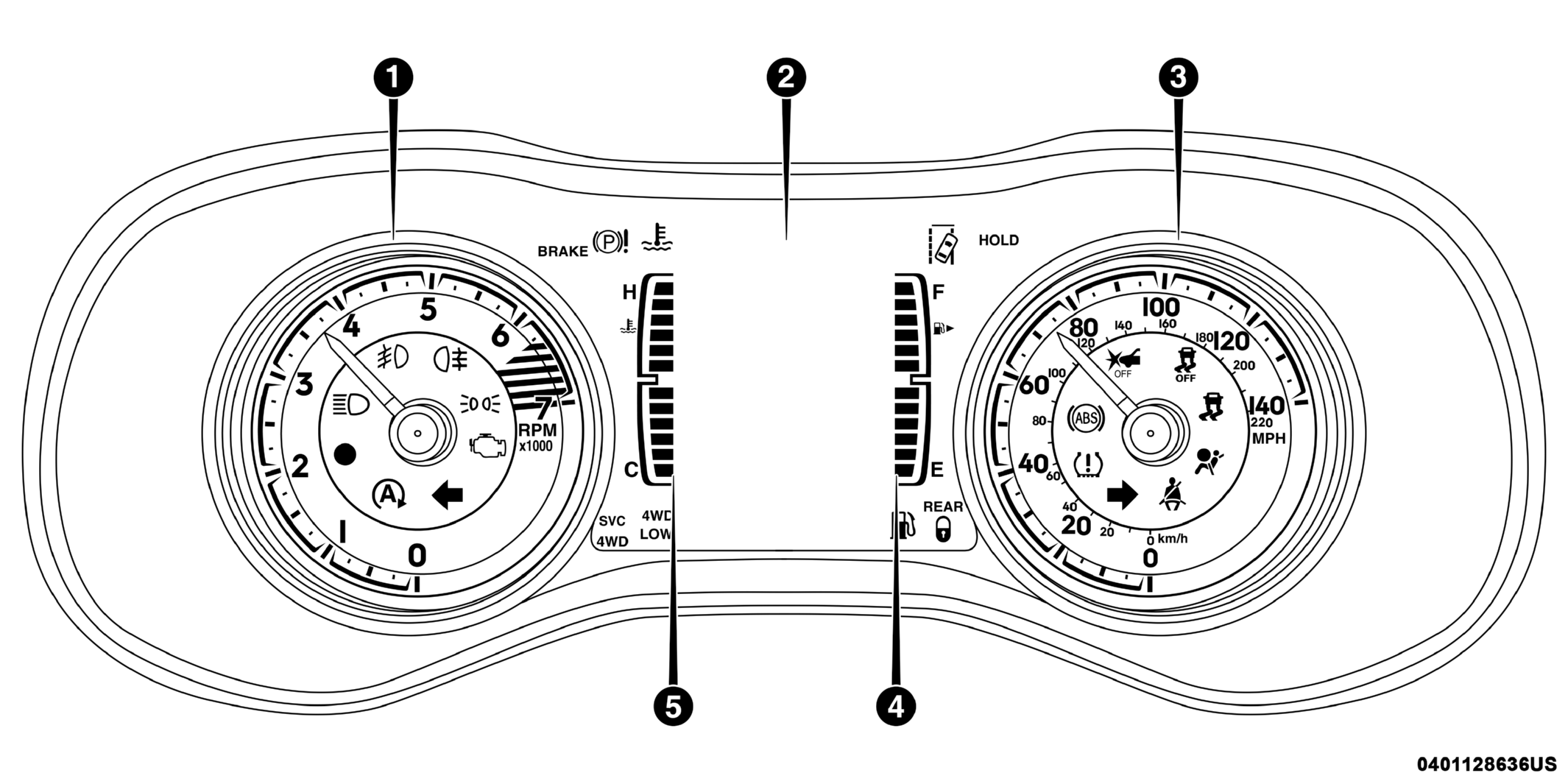

The Base IPC gauge (5) consists of a movable gauge needle or pointer controlled by the IPC circuitry and a fixed vertical gauge scale on the IPC overlay on the left side of the 3.5 inch Electronic Vehicle Information Center (EVIC) that reads from C (Cold) to H (Hot).

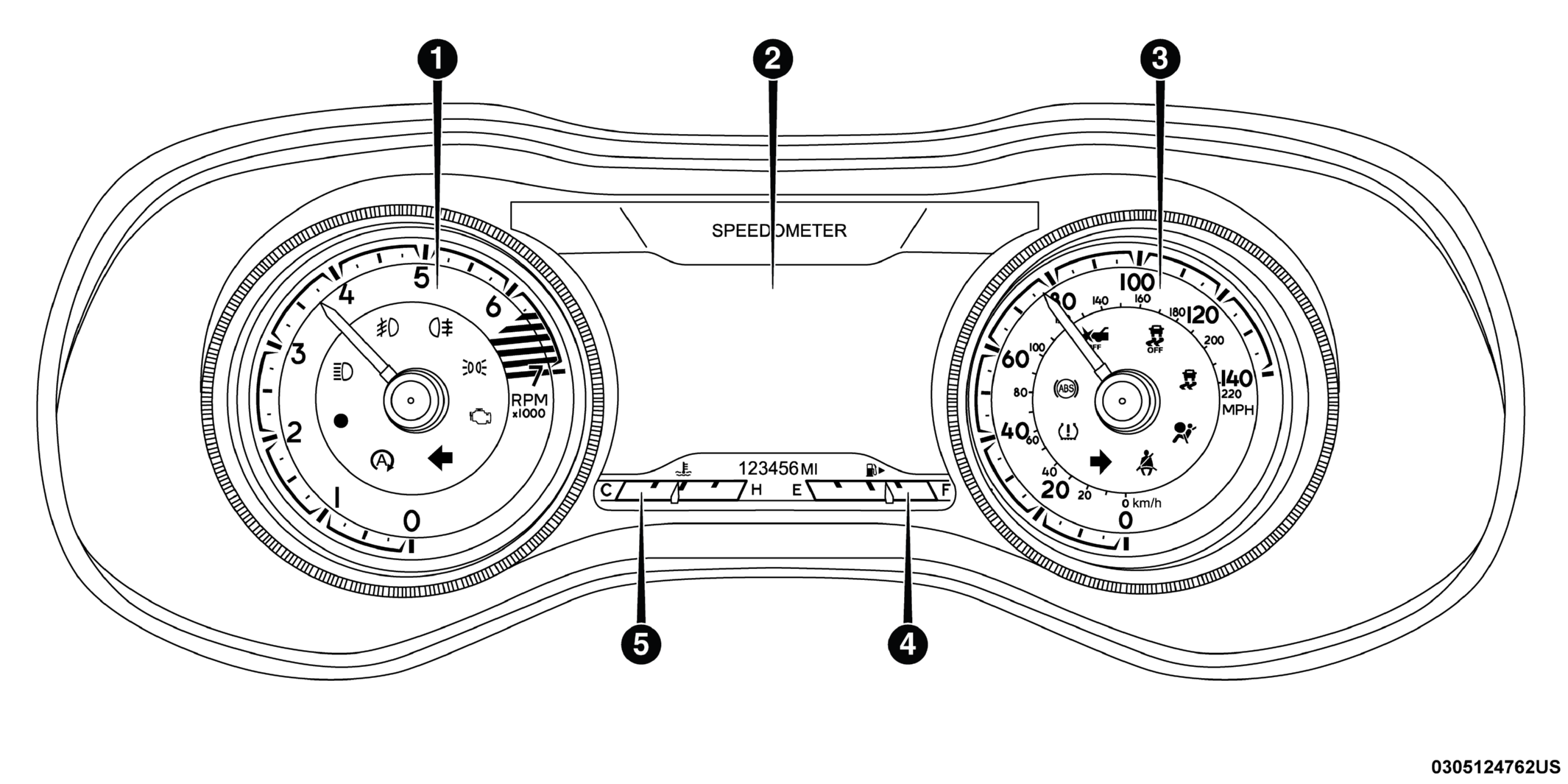

The Premium IPC gauge (5) consists of a movable gauge needle or pointer controlled by the IPC circuitry and a fixed horizontal gauge scale in the lower left portion of the 7 inch EVIC that reads from C (Cold) to H (Hot).
An International Control and Display Symbol icon for engine coolant temperature is located on the gauge face, near the high end of the scale on the Base IPC and above the middle of the scale on the Premium IPC. For more information about International Control and Display Symbols. Refer to INTERNATIONAL VEHICLE CONTROL AND DISPLAY SYMBOLS, DESCRIPTION .
