Switch, Headlamp: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, Occupant Classification System (OCS), seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to follow these instructions may result in accidental airbag deployment.

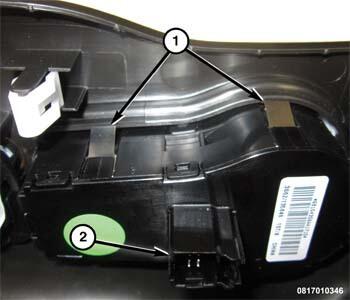

GC0159570Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the drivers side lower steering column cover panel. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
  3. With the panel loosened, disconnect the wire harness connector from the headlight switch harness receptacle (2).
  4. Remove the panel to access the two push down tabs (1). Press down on both tabs to and press the switch outward from the panel.
  5. Remove the headlight switch.
