Lamp, Tail: Removal: Inner

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the liftgate trim. Refer to PANEL, TRIM, REMOVAL .
    GC0186919Courtesy of CHRYSLER GROUP, LLC

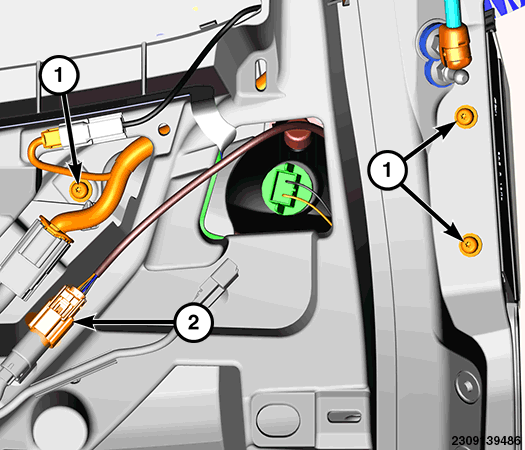

  3. Disconnect the wire harness connector (2) and remove the fasteners (1).
    GC0186917Courtesy of CHRYSLER GROUP, LLC

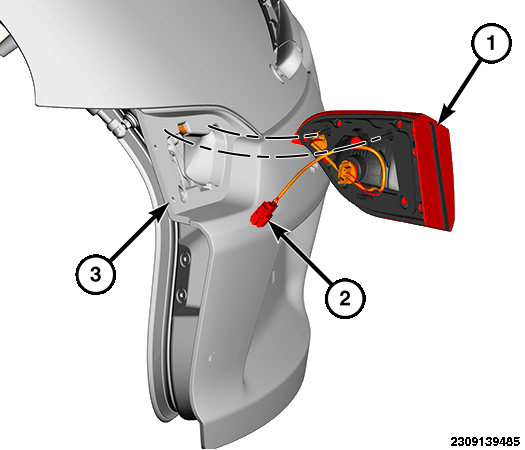

  4. Remove the lamp unit (1) from the liftgate opening (3).
