Lamp, License Plate: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0186434Courtesy of CHRYSLER GROUP, LLC

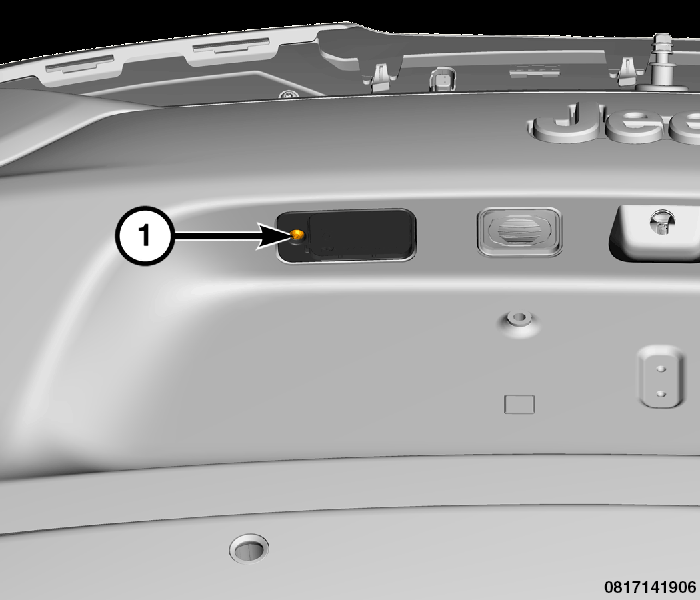

  2. Remove the license plate lamp retaining fastener (1).
    GC0186606Courtesy of CHRYSLER GROUP, LLC

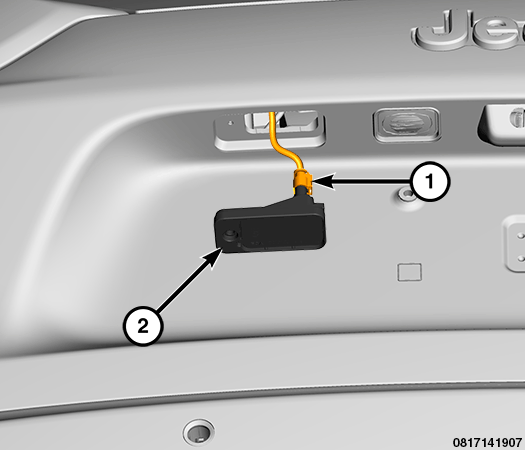

  3. Pull the license plate lamp (2) from the liftgate and disconnect the wire harness connector (1).
