Lamp, Center High Mounted Stop: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the rear spoiler reinforcement from the spoiler. Refer to SPOILER, REMOVAL .

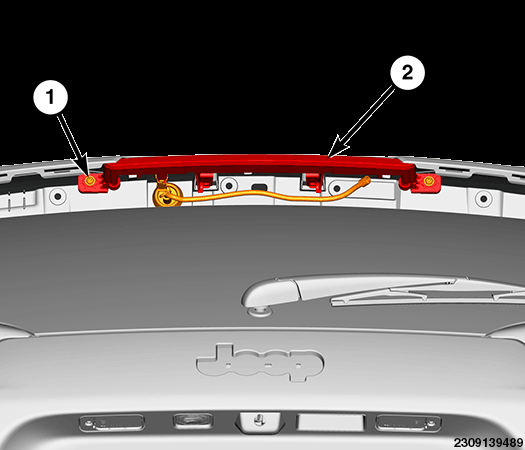

3. Remove the fasteners (1) and remove the Center High Mounted Stop Lamp (CHMSL) (2) from the spoiler.
4. Disconnect the wire harness connector.
