Duct, Floor Distribution: Removal

WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE:

Driver side shown in illustration, passenger side typical.

  1. Remove the front and rear floor carpet. Refer to CARPET, FLOOR, REMOVAL .

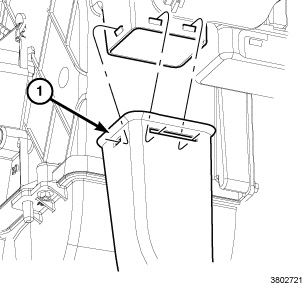

    GC0156234Courtesy of CHRYSLER GROUP, LLC
  2. Using a small flathead screwdriver or equivalent, disengage the retaining tabs securing the floor duct (1) at the HVAC housing.

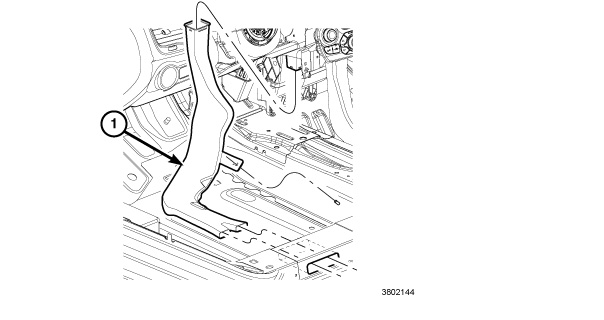

    GC0156222Courtesy of CHRYSLER GROUP, LLC
  3. Detach/remove the floor duct retainer from the stud in the floorpan.
  4. Remove the floor duct (1).
