Mirror, Rearview: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0187047Courtesy of CHRYSLER GROUP, LLC

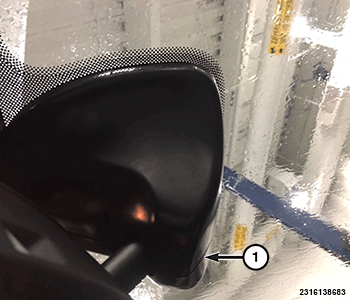

  2. Using a trim stick or equivalent, separate and remove the rearview mirror cover (1).
    GC0186576Courtesy of CHRYSLER GROUP, LLC

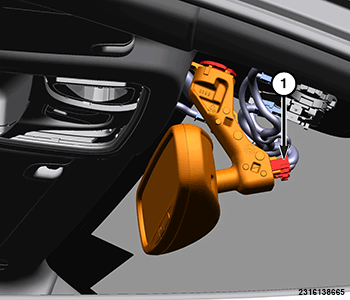

  3. Disconnect the wire harness connector (1).
    GC0186480Courtesy of CHRYSLER GROUP, LLC

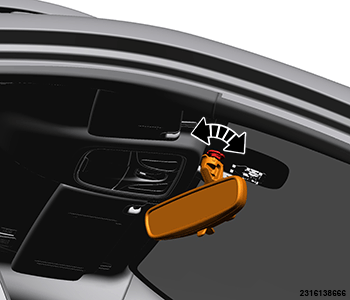

  4. Twist the mirror assembly clockwise and release the mirror from the aluminum button attached to the windshield.
