Gap And Flush: Specifications

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All measurements are in millimeters.

O/F = Over Flush
U/D = Up/Down
U/F = Under Flush
F/A = Fore/Aft

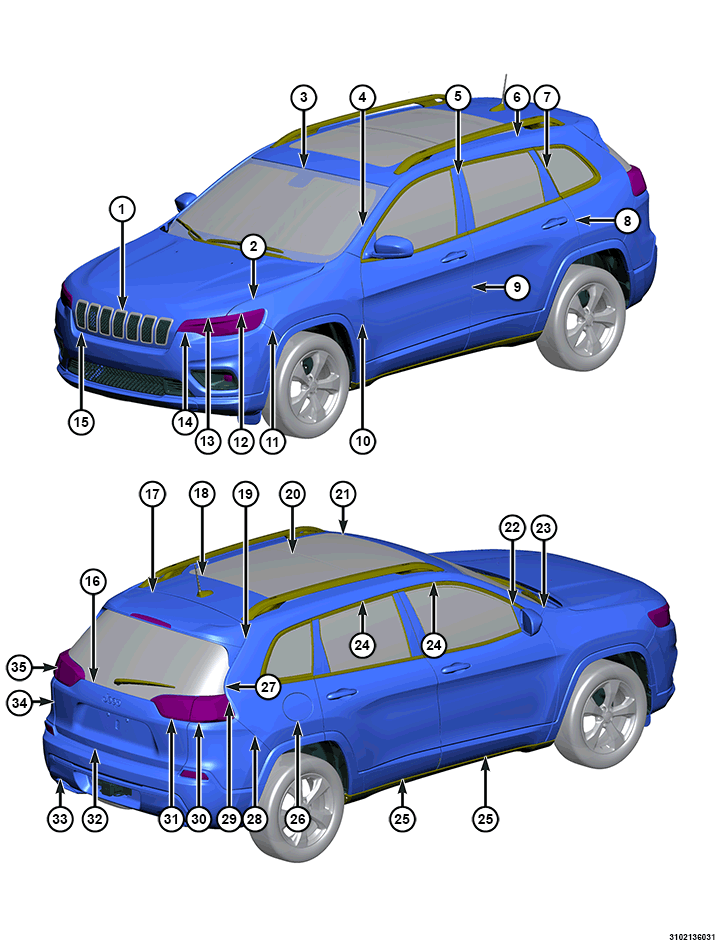

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Grille Ring to Hood	1.0 +1.0 /- 0.5	-
2	Hood to Fender	3.5 +/- 1.0	Hood U/F 1.1 at incline
		Parallel within 0.7	Transition to 0.8 to 0.0 at rear +/- 1.1
		Side to side within 1.5	Consistent within 1.1
			Side to side within 1.5
3	Windshield to Roof	6.5 +/- 1.7	Windshield U/F 2.0 +/- 1.7
4	Windshield to A-pillar	3.7 +/- 1.7	-
5	Front Door Applique to Rear Door Applique	4.0 +/- 1.5	0.0 +/- 1.5
		Parallel within 1.5
6	Roof to Body Side Aperture	0.0 +/- 1.0	Roof U/F 6.5
			Transition to 7.7 in rear +/- 1.0
7	Quarter Glass to Rear Door Applique	4.0 +/- 1.5	Quarter Glass O/F 1.0 +/- 1.5
		Parallel within 1.5
8	Rear Door to Body Side Aperture	3.5 +/- 0.9	0.0 +/- 0.9
		Parallel within 0.9
9	Front Door to Rear Door	3.5 +/- 0.9	Front Door O/F 0.5 +/- 0.9
		Parallel within 0.9
10	Fender to Front Door	3.5 +/- 0.9	Fender O/F 0.5 +/- 0.9
	Feature Line U/D 0.0 +/- 1.0	Parallel within 0.9
11	Upper Fascia to Fender	0.0 +/- 0.4	0.0 +/- 0.6
12	Headlight to Fender	1.0 +1.1 /- 1.0	Headlight U/F 1.2 at inboard +/- 1.2
		Parallel within 1.0	Transition to 2.6 at outboard to 7.3 at corner to 11.5 at bottom +/- 1.0
			Consistent within 1.2
13	Headlight to Hood	6.0 +/- 1.5	Headlight U/F 2.3 +/- 1.1
		Transition to 4.5+/- 1.4 Cross Car	Consistent within 1.5
		Parallel within 1.5 U/D	Transition to 0.5 Inboard
14	Upper Fascia to Headlight	0.7 +1.1 /- 0.7	1.4 at inboard
		Parallel within 0.7	Transition to 0.9 to 2.6 to 2.8 to 2.1 to 2.4 at outboard to 7.3 +/- 1.3
			Consistent within 1.9
15	Upper Fascia to Hood (Cross Car)	3.8 +/- 1.4	-
		Parallel within 1.2
		Side to side within 1.5
15	Upper Fascia to Hood (U/D)	14.1 +/- 2.0	-
		Parallel within 2.0
15	Upper Fascia to Hood (F/A)	31.6 +/- 1.5	-
		Side to side within 1.5
16	Liftgate to Liftgate Glass	4.0 +/- 1.5	Liftgate U/F 0.2 +/- 1.5
		Parallel within 1.5
17	Liftgate to Roof	6.5 +/- 1.4	Liftgate U/F 2.0 +/- 1.6
		Parallel within 1.4	Consistent within 1.6
18	Rear Sunroof Glass to Roof	0.0	Sunroof Glass 0.0 to O/F 2.5
			Consistent within 1.0
19	Upper Liftgate to Body Side Aperture	5.0 +/- 1.5	Spoiler U/F 2.0 +/- 1.7
		Parallel within 1.5	Consistent within 1.7
20	Rear Sunroof Glass to Front Sunroof Glass	0.0	Rear Sunroof Glass 0.0 to U/F 2.5
			Consistent within 1.5
21	Front Sunroof Glass to Roof	0.0	Sunroof Glass 0.0 to U/F 2.5
			Consistent within 1.0
22	Door Molding to Mirror Flag	0.0 to 0.5	Flag O/F 2.0
			Transition to 3.5 at top +/- 1.5
23	Fender to A-pillar	2.0 +/- 1.0	0.0 +/- 1.0
		Parallel within 1.0
		Side to side within 1.0
24	Door Molding to Body Side Aperture	4.5 +/- 1.4	Molding U/F 1.3 +/- 1.3
		Parallel within 1.4
25	Sill Moldings to Door Cladding	U/D 6.0 +/- 2.0	Cross Car varies +/- 2.0
26	Fuel Door to Body Side Aperture	2.5 +/- 0.7	Door U/F 0.9 +/- 0.9
		Parallel within 1.0	Consistent within 1.0
27	Liftgate Glass to Body Side Aperture	5.0 +/- 1.9	Glass U/F 9.0 +/- 2.2
		Parallel within 1.5	Transition to 10.5 +/- 2.2 at bottom
			Consistent within 2.2
28	Body Side Aperture to Rear Fascia	0.0 +/- 0.5	Fascia U/F 0.5+/- 0.5
			Transition to Flush at Lamp and Flare
29	Body Side Aperture Lamp to Body Side Aperture	1.5 +/- 1.2	Lamp U/F 10.0
		Parallel within 1.2	Transition to 9.0 to 9.7 at top +/- 1.0
30	Body Side Aperture Lamp to Rear Fascia	1.5 +/- 1.2	Lamp U/F 9.7 at front +/- 1.0
		Parallel within 1.2	Transition to 4.7 to 9.8 at rear +/- 1.0
		Side to side within 1.5
31	Liftgate Lamp to Liftgate	1.5 Transition to 1.2 Outboard +/- 1.2	Lamp O/F 3.0 at outboard
			Transition to 1.7 thru rise to U/F 4.0 at inboard +/- 1.0
32	Liftgate to Lower Rear Fascia	8.5 Transition to 6.0 Cross Car at Top +/- 1.8	-
		Parallel within 1.8 U/D
33	Exhaust Tip to Lower Valance U/D	27.8 +/- 10.0	-
		Consistent within 10.0
33	Exhaust Tip to Lower Valance Cross Car	Outboard 30.0 +/- 10.0	-
		Inboard 32.3 +/- 10.0
		Side to side within 10.0
34	Liftgate to Upper Rear Fascia	5.0 Transition to 6.2 at Bottom +/- 2.0	Fascia O/F 1.9 +/- 2.0 @ Top
		Parallel within 2.0	Transition to 0.5 at Bottom
		Side to side within 2.0	Consistent within 2.0
35	Body Side Aperture Lamp to Liftgate Lamp	5.0 +/- 1.7	Body Side Aperture Lamp O/F 1.9
		Parallel within 1.7	Transition to 0.4 at Top +/- 1.7
		Side to side within 2.0	Consistent within 1.5
			Side to side within 2.0
