Bench Rear Seat

Remove the 40% bench rear seat back from the vehicle. Refer to SEAT, REAR, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

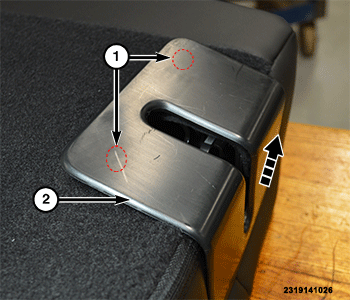

Using a trim tool, release the two clips (1), then lift the latch trim cover (2) and remove.

Courtesy of CHRYSLER GROUP, LLC

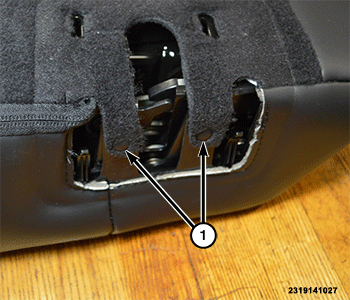

Using a trim tool, remove the push fasteners (1) behind the latch trim cover.

Courtesy of CHRYSLER GROUP, LLC
Remove the headrest from the seat back.
Using your hands, pull firmly and remove both headrest sleeves (1).

Courtesy of CHRYSLER GROUP, LLC

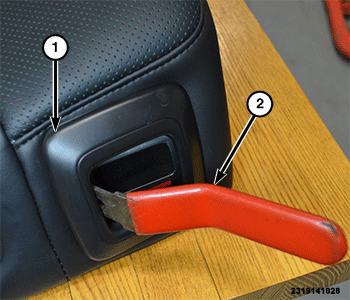

Using a trim tool (2), pry on the inside of the handle bezel (1) to release the tabs and remove.

Courtesy of CHRYSLER GROUP, LLC
Remove the fastener (1), then using a trim tool remove the trim cover (2).

Courtesy of CHRYSLER GROUP, LLC
Open the lower J-strip (2) and unzip (1) both sides of the seat back trim.

Courtesy of CHRYSLER GROUP, LLC

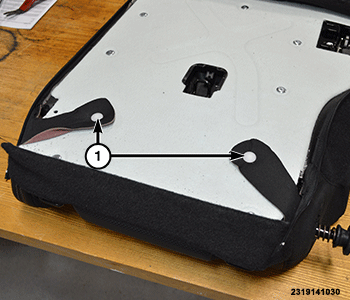

Lift the seat back trim and remove the two push fasteners (1).
Remove the seat back cover and the seat back foam as an assembly from the seat back frame.

Courtesy of CHRYSLER GROUP, LLC

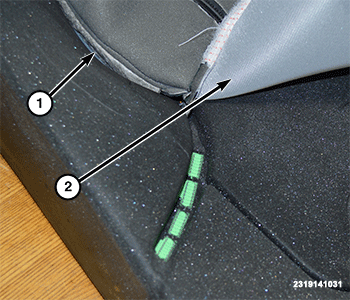

Pull the seat back cover (2) away from the seat back foam, releasing the hook and loop fasteners.
Cut all the hog rings along the cover fold seam and remove the rear seat back cover.
