Cable, Release, Fold Flat: Removal
NOTE:
60% rear seat cable shown, 40% rear seat cable similar.
- Remove the seat back cover. Refer to COVER, REAR SEAT BACK, 40%, REMOVAL or COVER, REAR SEAT BACK, 60%, REMOVAL .NOTE:
It is not necessary to completely remove the cover from the foam.

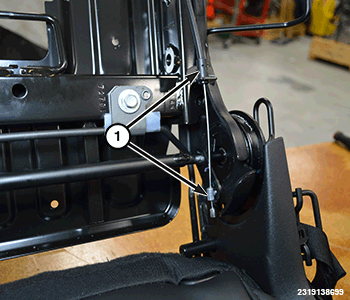

- Remove the cable (1) from the frame and mechanism.
- Unclip the cable from the seat frame.

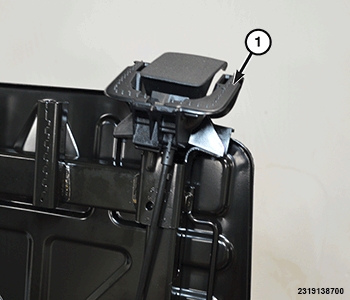

- Remove the fasteners at the top of the handle and remove the cable assembly (1).
