Mirror, Outside Rearview: Removal

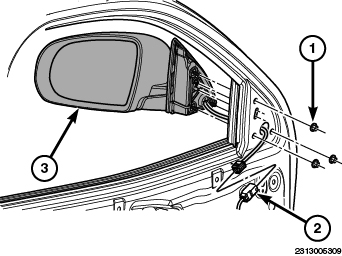

GC0159678Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .
  2. If equipped, disconnect the power mirror accessory wire harness connector (2).
  3. Remove the fasteners (1) securing the exterior mirror (3).
  4. If equipped with power mirror accessory features, detach the wire harness grommet located in the mirror flag area.
  5. Remove the exterior mirror (3) from vehicle and feed the wire harness (2) and the grommet through the hole in the mirror flag area.
